Murrelektronik

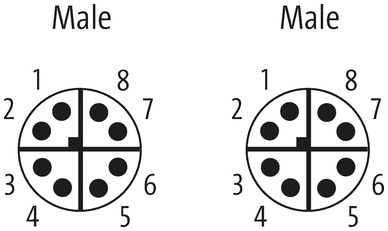

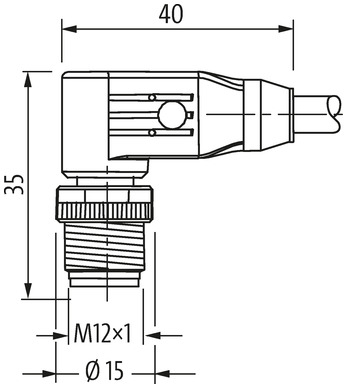

M12 male 0° / M12 male 90° X-cod. 315° shielded
Hind käibemaksuta
Küsi pakkumist
PUR 4x2xAWG26 shielded gn UL/CSA 10m |
Kaal
0,514 kg
Päritoluriik
CZ
Mudeli tähistus
MSXAL0-XC-08D790_10.0-ZS-315°
Operating voltage
50 V AC/60 V DC
Transfer rate
10 Gbit/s
Mounting method
inserted, tightened
Temperature range
-25...+85 °C, depending on cable quality
Cable identification
790
Approval (cable)
cURus (AWM-Style 20549/11635); CE conform
Cable weight [g/m]
52,8 g
Material wire
Cu wire, bare
Resistor (core)
max. 143 Ω/km (20 °C)
Single wire Ø (core)
0.16 mm
Diameter (core)
4× 2× 0.14 mm²
Material wire isolation
PE
