Customized printing and packaging Male straight – female 90° M12 – M12, 4-pole with cable sleeves Zinc die casting, save-cover coated Plastic housings...
Kaal
0,568 kg
Päritoluriik
DE
Mudeli tähistus
MSDL0-A-T654_15.0-XH-DS-S30
Cable length
15,00 m
Family construction form
M12

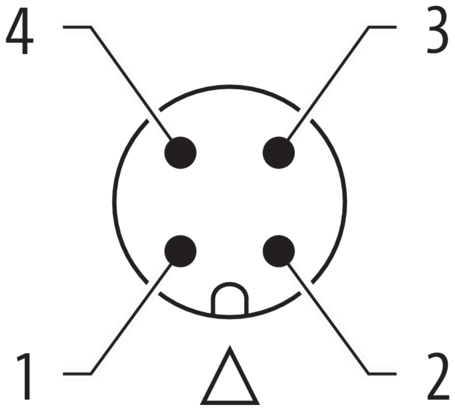

No. of poles
4
Mounting method
inserted, screwed
Material contact
Copper alloy
Coating contact
gold plated
Operating voltage AC max.
250 V
Operating voltage DC max.
250 V
Pollution Degree
3
Rated surge voltage
2,5 kV
Material group (IEC 60664-1)
I
Operating temperature min.
-25 °C
