Murrelektronik

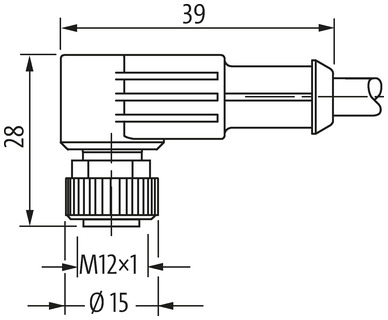

M12 male 0° / M12 female 90° A-cod.
Prix hors TVA
Demander un devis
Male straight – female 90° M12 – M12, 3-pole (circuit diagram) A-coded Art-No. 7005 - M12 Lite - (plastic hexagonal screw) on request Plastic housings...
Poids
0,041 kg
Pays d'origine
DE
Désignation du modèle
MSDL0-A-8_033_0.6
Form
40162
Operating voltage
max. 250 V AC/DC
Operating voltage (only UL listed)
max. 30 V AC/DC
Operating current per contact
max. 4 A
Material group
IEC 60664-1, category I
Coding
A-coded
Locking of ports
Screw thread (M12×1 mm) recommended torque 0.6 Nm, self-securing
Protection
IP66K, IP67 inserted and tightened (EN 60529)
Material
PUR
Locking material
Zinc die casting, matte nickel plated
suitable for corrugated tube (internal Ø)
10 mm
Compression gland
M12 (SW13)
