Customized printing and packaging Male straight – female straight M12 – M12, 4-pole Art-No. 7005 - M12 Lite - (plastic hexagonal screw) on request with...
Kaal
0,384 kg
Päritoluriik
DE
Mudeli tähistus
MSBL0-A-T634_10.0-XH

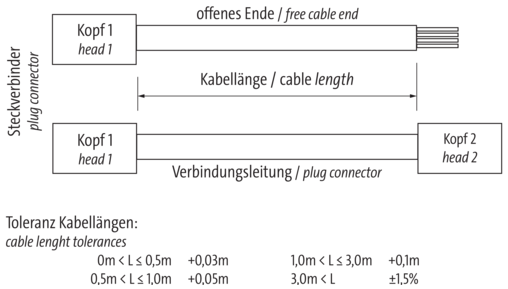

Cable length
10,00 m
Family construction form
M12
No. of poles
4
Mounting method
inserted, screwed
Threaded hole
M12 x 1
Tightening torque
0,6 Nm
Width across flats
SW13
suitable for corrugated tube (internal Ø)
10 mm
Material contact
Copper alloy
Coating contact
gold plated
Degree of protection (EN IEC 60529)
IP67, IP66K, IP65
Operating voltage AC max.
250 V
