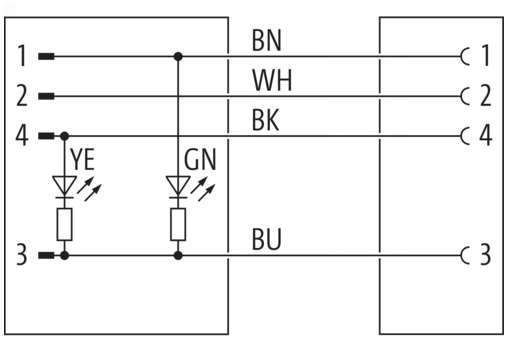

Customized printing and packaging Male straight – female 90° M12 – M12, 4-pole LED (yellow/green) with cable sleeves Zinc die casting, save-cover coated...
Poids
0,199 kg
Pays d'origine
CZ
Désignation du modèle
MSDL0-AL1-T654_5.0-DS-XH
Cable length
5,00 m
Family construction form
M12

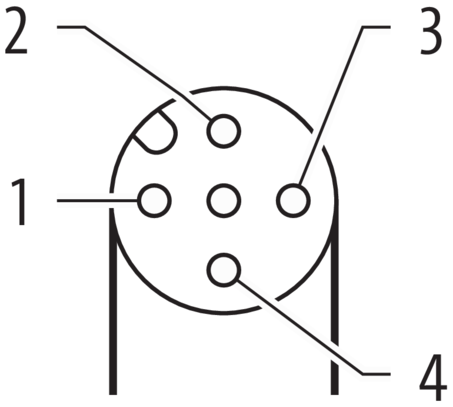

No. of poles
4
Mounting method
inserted, screwed
Material contact
Copper alloy
Coating contact
gold plated
Operating voltage DC
24 V
Operating voltage DC min.
18 V
Operating voltage DC max.
30 V
Pollution Degree
3
Rated surge voltage
0,8 kV
Material group (IEC 60664-1)
I
