Murrelektronik

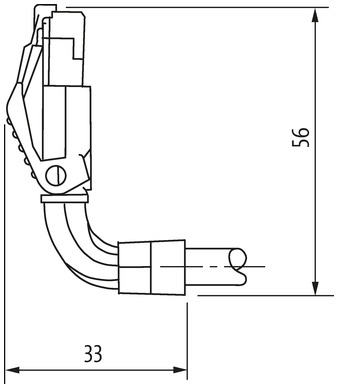

M12 male 0° D-cod. / RJ45 90° up shielded
Price excluding VAT
Request a quote

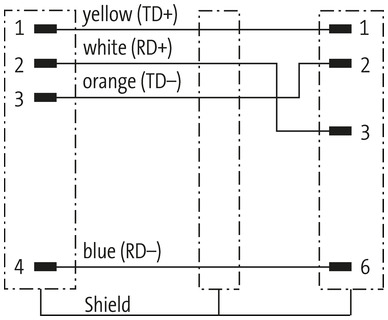

Male straight – male 90° on top M12 – RJ45, 4-pole D-coded shielded Ethernet CAT5 Transmission properties with channel transmission up to 100 m Further...
Weight
0,217 kg
Country of origin
DE
Model designation
MSDAL0-RD-*796_3.0-ZS
Form
44727
Operating voltage
max. 60 V DC
Rated surge voltage
1.0 kV
Operating current per contact
max. 1.5 A (20 °C)
Transfer parameters
CAT5, Class D (ISO/IEC 11801:2002), (EN 50173-1)
Transfer rate
up to 100 Mbit/s full duplex
Material group
IEC 60664-1, category I

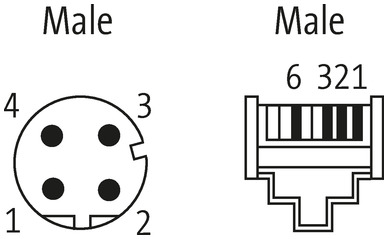

Coding
M12, D-coded
Locking of ports
Screw thread (M12×1 mm) recommended torque 0.6 Nm, self-securing
Protection
IP67 (M12) - IP20 (RJ45)
Material
PUR
Locking material
Zinc die casting, matte nickel plated
