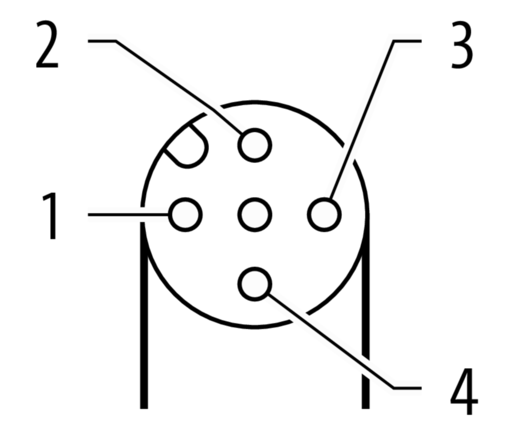

Female 90° M12, 4-pole IDC terminals Connection cross section: 0.25...0.5 mm² Stainless steel 1.4305 (V2A) PTFE coated Art-No. 7005 - M12 Lite - (plastic...
Kaal
0,024 kg
Päritoluriik
DE
Mudeli tähistus
MSDL0-AC-T-IDC-S03
Family construction form
M12
Coding
A
Degree of protection (EN IEC 60529)
IP67
Operating voltage AC max.
32 V
Operating voltage DC max.
32 V
Current operating per contact max.
4 A
Single wire diameter min.
0,1 mm
Connection cross section min.
0,25 mm²
Connection cross section max.
0,5 mm²
Tightening torque
0,6 Nm
Mounting set
M12 x 1
Wire insulation diameter min.
1,2 mm
