Female 90° M12, 5-pole Shielded Screw terminals Sealing range (cable Ø): 4...6 mm good resistance to oil and chemicals The resistance to aggressive media...
Вес
0,074 kg
Страна происхождения
HU
Обозначение модели
M12 BUCHSE GEW.4...6 5pol.
Family construction form
M12

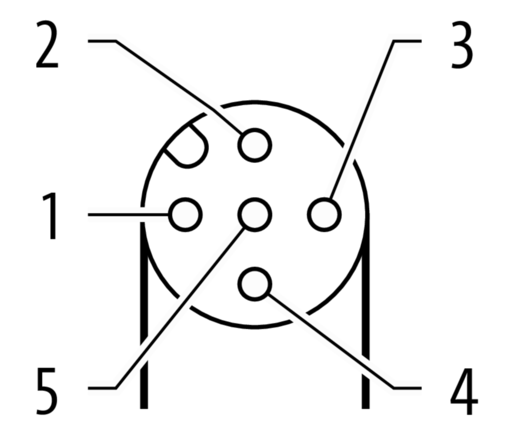

No. of poles
5
Coding
A
Gender
female
Mounting method
Field-wireable
Threaded hole
M12 x 1
Width across flats
SW18
Cable outlet
angled
Degree of protection (EN IEC 60529)
IP67
Operating voltage AC max.
60 V
Operating voltage DC max.
60 V
Current operating per contact max.
4 A
