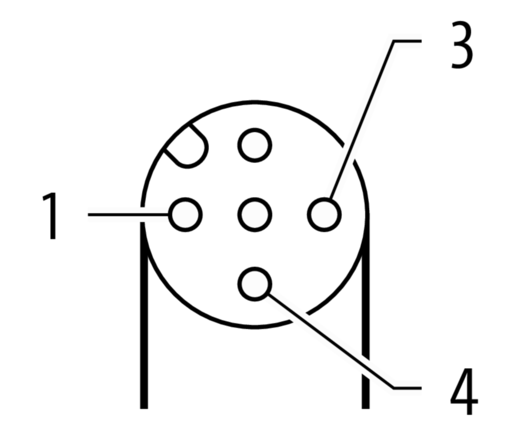

Female 90° M12, 3-pole IDC terminals Connection cross section: 0.25...0.5 mm² Art-No. 7005 - M12 Lite - (plastic hexagonal screw) on request The resistance...
Вес
0,020 kg
Страна происхождения
DE
Обозначение модели
MSDL0-AC-R-IDC
Family construction form
M12
Degree of protection (EN IEC 60529)
IP67
Operating voltage AC max.
32 V
Operating voltage DC max.
32 V
Current operating per contact max.
4 A
Single wire diameter min.
0,1 mm
Connection cross section min.
0,25 mm²
Connection cross section max.
0,5 mm²
Tightening torque
0,6 Nm
Wire insulation diameter min.
1,2 mm
Wire insulation diameter max.
1,6 mm
Additional condition protection degree
inserted, screwed
