Plug Connectors for Food & Beverage Female straight M12, 5-pole A-coded Stainless steel 1.4404 (V4A) Profile gasket Further cable lengths on request.
Вес
1,662 kg
Страна происхождения
DE
Обозначение модели
MSBL0-U344_30.0-S14
Cable length
30,00 m
Family construction form
free cable end

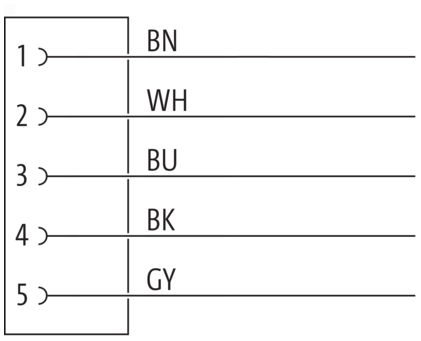

No. of poles
5
Coding
A
Gender
female
Mounting method
inserted, screwed, Shaking protection
Threaded hole
M12 x 1
Tightening torque
0,6 Nm
Width across flats
SW14
Cable outlet
straight
suitable for corrugated tube (internal Ø)
10 mm
Material contact
Copper alloy
