Cable is approved for 600 V Female straight M12, 5-pole USA Plastic housings with good resistance against chemicals and oils. The resistance to aggressive...
Kaal
0,855 kg
Päritoluriik
CZ
Mudeli tähistus
MSBL0-U161_10.0
Cable length
10,00 m
Family construction form
free cable end

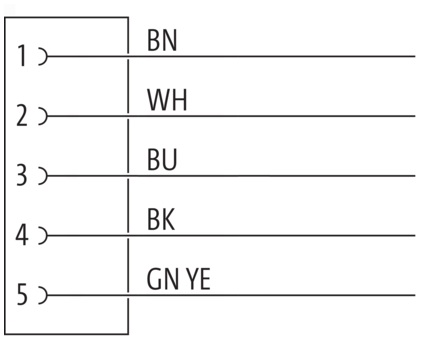

No. of poles
5
Coding
A
Mounting method
inserted, screwed, Shaking protection
Threaded hole
M12 x 1
Tightening torque
0,6 Nm
Width across flats
SW13
Material contact
Copper alloy
Coating contact
gold plated
Degree of protection (EN IEC 60529)
IP67, IP66K, IP65
Stripping length (jacket)
20 mm
