Murrelektronik
M12 fem. recept. D-cod. rear / RJ45 male 90° left
Prix hors TVA
Demander un devis
Ethernet CAT5 Flange female straight – male 90° on top D-coded Shielded with cable sleeves maximum length at channel transmission corresponds to 100 m...
Poids
0,059 kg
Pays d'origine
DE
Désignation du modèle
MSDBFH-RB-*796_0.35-ZS
Cable length
0,35 m
Family construction form
M12

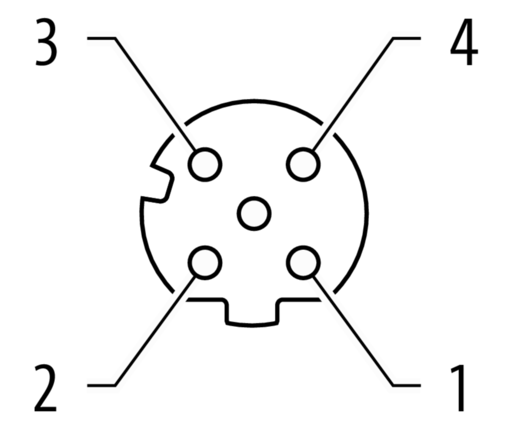

No. of poles
4
Coding
D
Gender
male
Mounting method
inserted, screwed
Threaded hole
M12 x 1
Tightening torque
0,6 Nm
Width across flats
SW19
suitable for corrugated tube (internal Ø)
10 mm
Material
Brass
Material contact
Copper alloy
