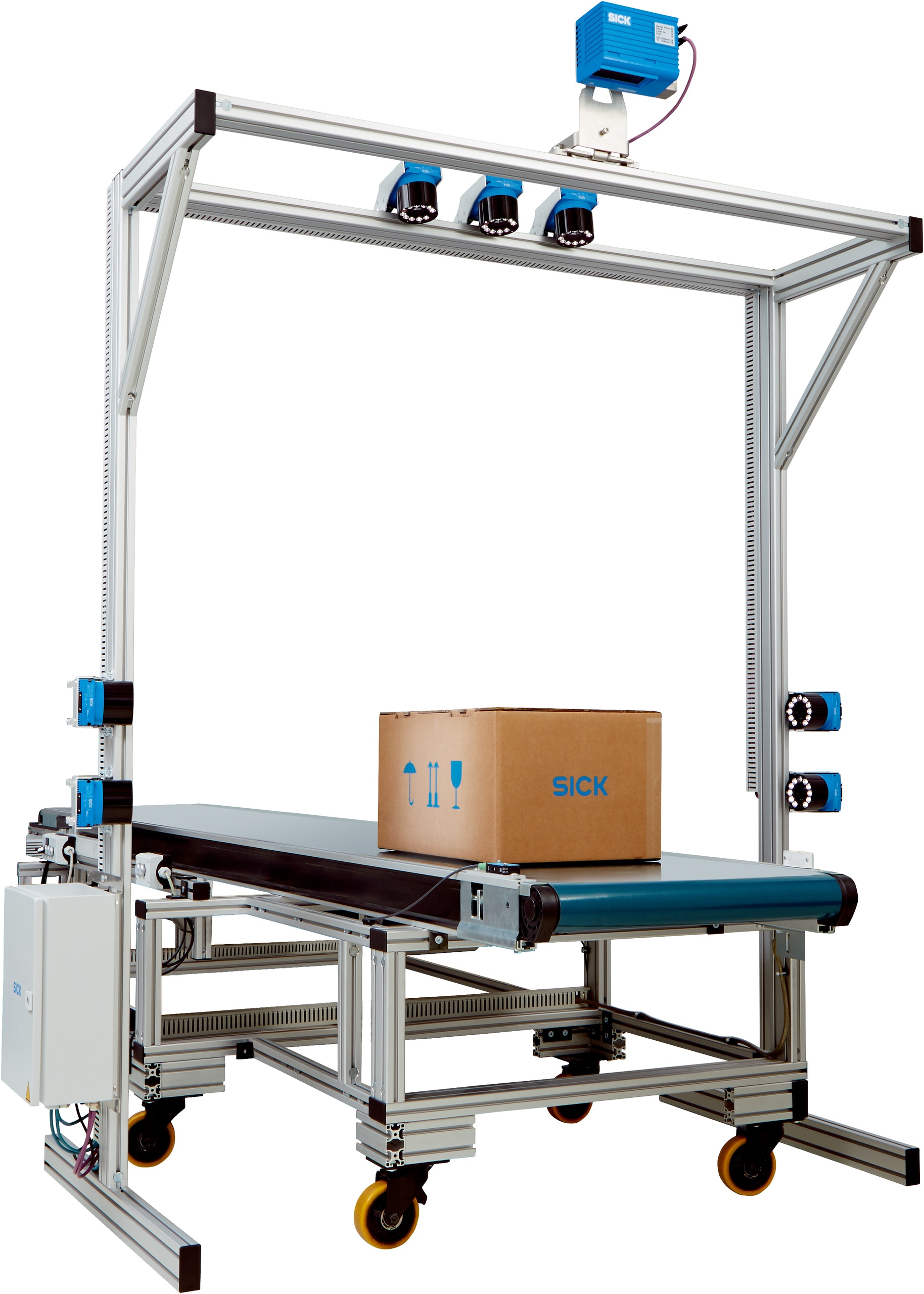

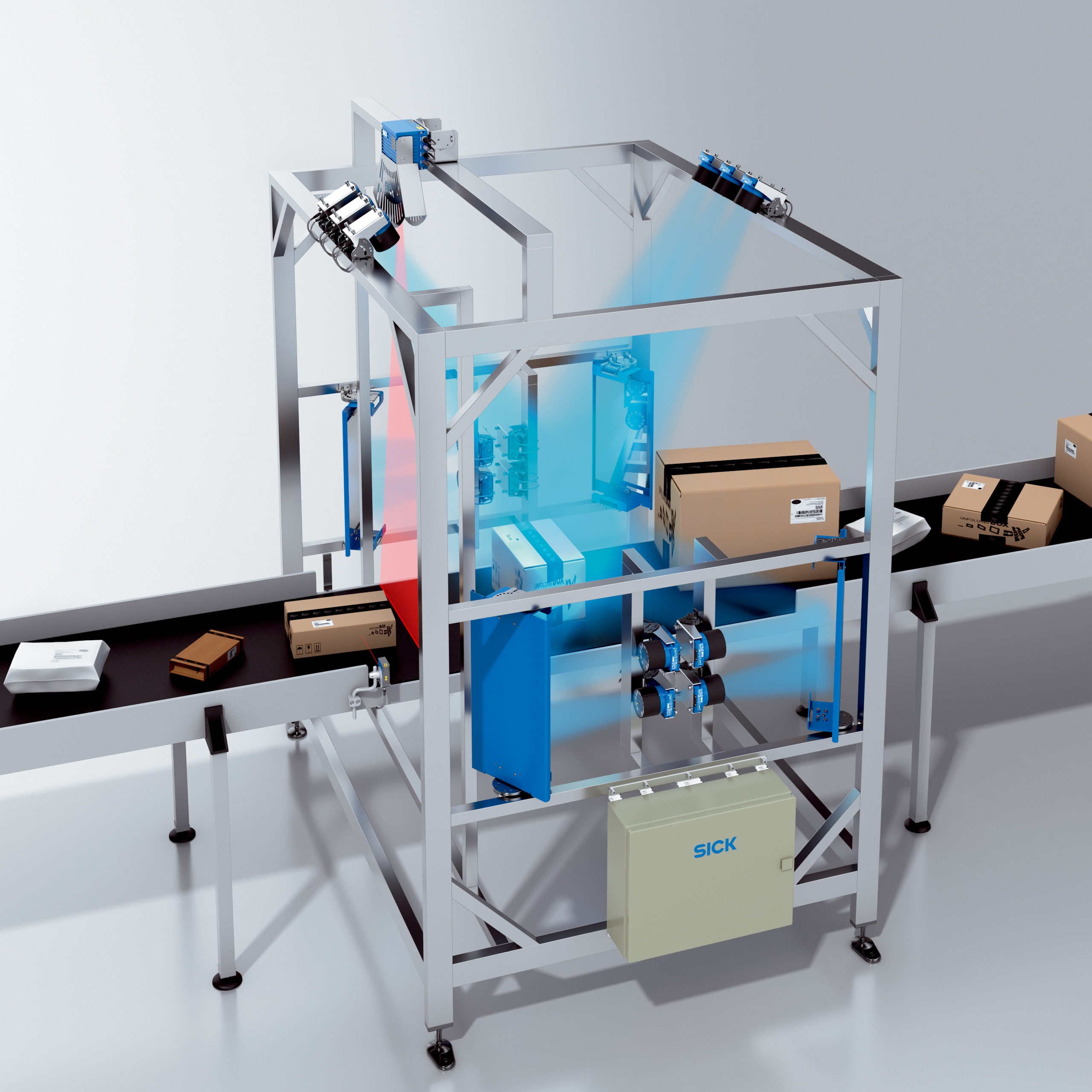

Track and trace systems | Lector65x System | Lector65x System Pro | Items supplied: Lector65x (1 x–16 x), optics (1 x ... 16 x), mounting bracket (1 x ... 16 x), controller, photoelectric sensor, Encoder, cables | Focus: Dynamic focus | Supply voltage: 100 V AC ... 264 V AC
Products by tasks
Identifying - 1D codeIdentifying - 2D code
Sensor
CMOS monochrome
Sensor resolution
4 MP
Reading distance
670 mm ... 2,000 mm, Depending on code
Focus
Dynamic focus
Focus trigger source
MSC800 (MLG, VMS, VML)
Scanning frequency
40 Hz, With resolution of 4 megapixels
Light source
Lighting LEDs: white (λ = 6000 K ± 500 K)Feedback spot: visible green light (λ = 525 nm ± 15 nm)Laser alignment aid: visible red light (λ = 630 nm ... 680 nm)
LED class
Risk group 1 (IEC 62471 (2006-07) / EN 62471 (2008-09))
Conveyor type
Belt conveyorTilt-tray sorterCross-belt sorterRoller conveyorOthers on request
Number of cameras
Lector65x: 1 ... 16
Object infeed and outfeed
Automatic
Dimensions, system (L x W x H)
Customized
Enclosure rating
IP64 (DIN 40 050)
Protection class
III
Connection modules
MSC800
Supply voltage
100 V AC ... 264 V AC
Mains frequency
50 Hz ... 60 Hz
Power consumption
20 W, ± 20 % per Lector65x (not included: connectivity, lightswitch, etc.)
Code types
1D2D4-state
1D code types
Interleaved 2 of 5CodabarCode 128Code 32Code 39Code 93GS1 DataBarGS1-128 / EAN 128PharmacodeUPC / GTIN / EAN
2D code types
Data Matrix ECC200GS1 Data-MatrixMaxiCodePDF417QR codeMaxi-Code
Code resolution
0.2 mm ... 1 mm
Transport speed
0 m/s ... 3 m/s, depending on application
Minimum object distance
50 mm
Side-by-side
✔
Touching objects
✔
Type
RS-232, RS-422/-485, digital input, opto isolated, reverese polarity protected, digital output, PNP +24 V, 30 mA, floating output
Number
2, 1, 1, 13, 1, 2
Optical indicators
21 LEDs (10 x status display, 10 x LED bar graph, 1 green feedback spot)
Memory card
Micro SD memory card (flash card) max. 16 GB, optional
Ambient operating temperature
0 °C ... +40 °C
Ambient temperature, storage
–20 °C ... +70 °C
Permissible relative humidity
90 %, Non-condensing
Electromagnetic compatibility (EMC)
EN 61000-6-4 (2007-01) + A1 (2011-03)
Ambient light immunity
2,000 lx, on code
Items supplied
Lector65x (1 x–16 x)Optics (1 x ... 16 x)Mounting bracket (1 x ... 16 x)ControllerPhotoelectric sensorEncoderCables
Laser class
1M (IEC 60825-1:2014), complies with 21 CFR 1040.10 except for the conformance according to “Laser Notice No. 50” from June 24, 2007
