Track and trace systems | Lector65x System | Lector65x System Core | Items supplied: Lector65x (1 x ... 4 x), optics (1 x ... 4 x), mounting bracket (1 x ... 4 x), CDB650 (1 x ... 4 x), photoelectric sensor, cables | Focus: Adjustable focus (manually) | Supply voltage: 24 V DC
Products by tasks
Identifying - 1D codeIdentifying - 2D code
Sensor
CMOS monochrome
Sensor resolution
4 MP

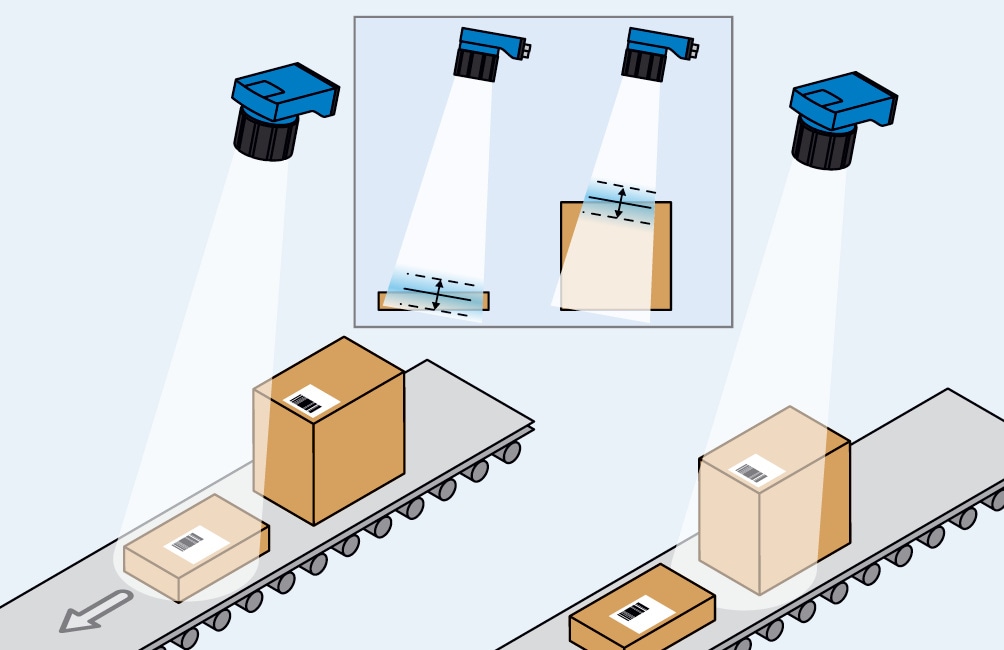

Reading distance
300 mm ... 2,200 mm, Depending on code
Focus
Adjustable focus (manually)
Focus trigger source
Fixed focus
Scanning frequency
40 Hz, With resolution of 4 megapixels
Light source
Lighting LEDs: white (λ = 6000 K ± 500 K)Feedback spot: visible green light (λ = 525 nm ± 15 nm)Laser alignment aid: visible red light (λ = 630 nm ... 680 nm)
LED class
Risk group 1 (IEC 62471 (2006-07) / EN 62471 (2008-09))

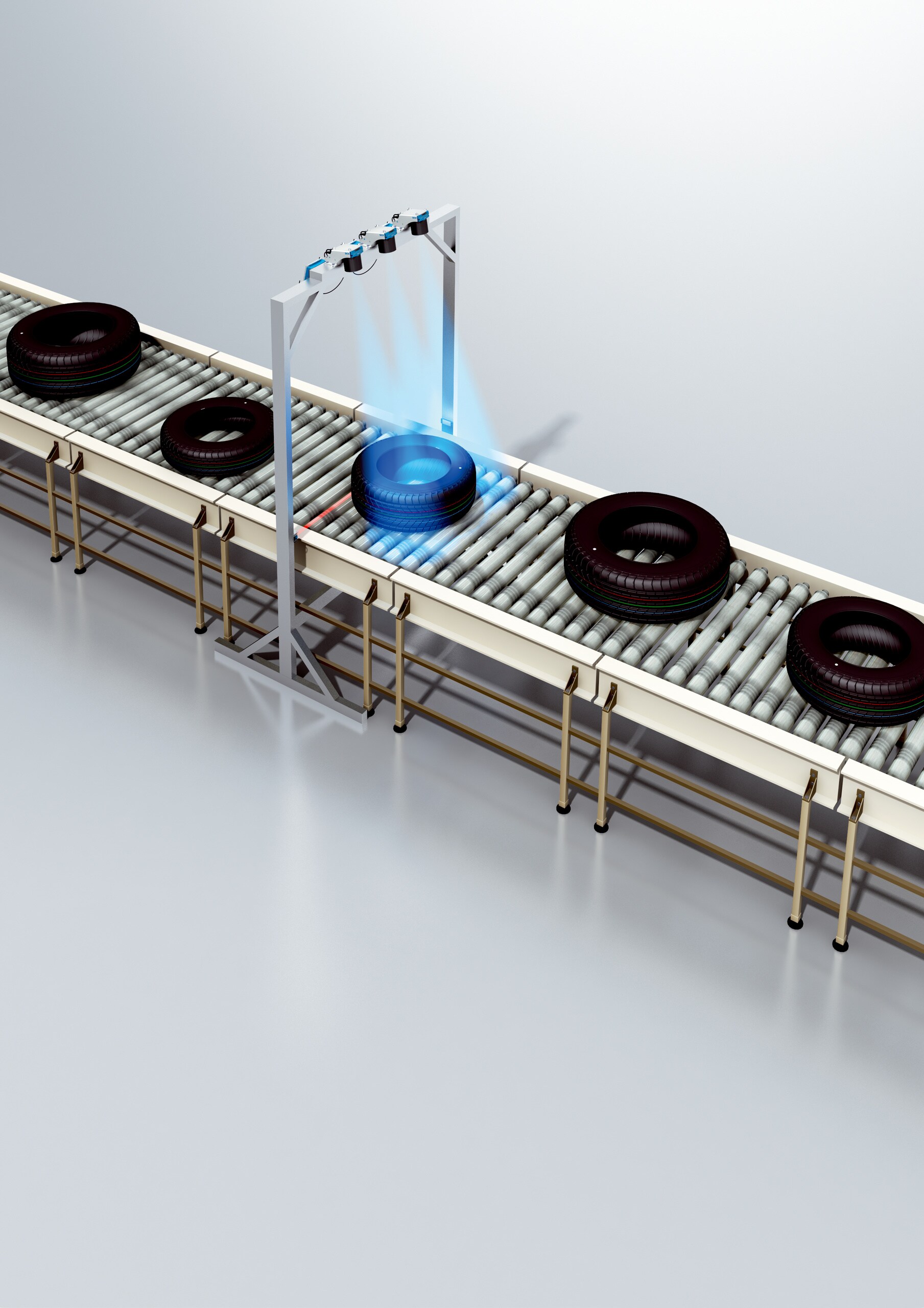

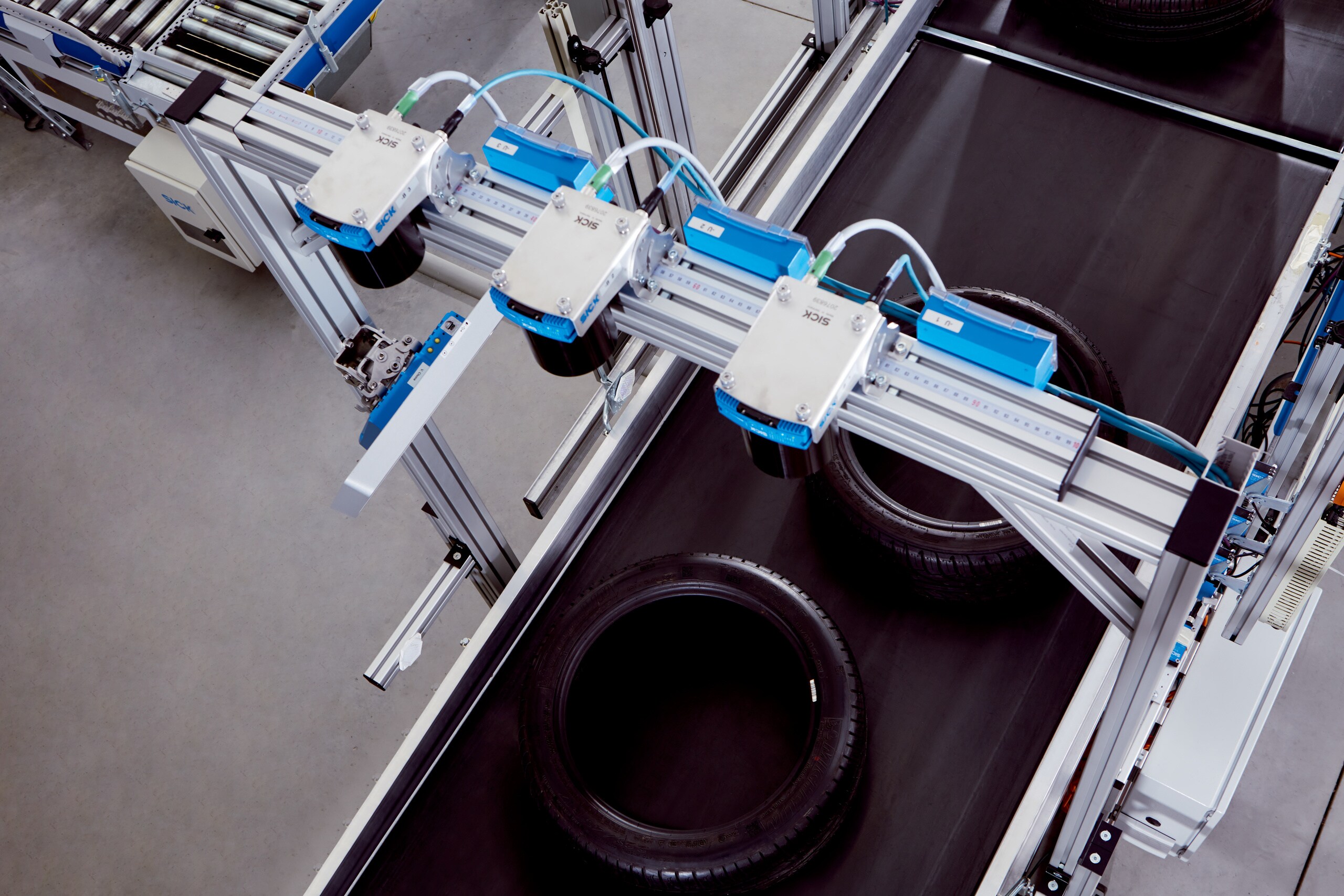

Conveyor type
Belt conveyorTilt-tray sorterCross-belt sorterRoller conveyorOthers on request

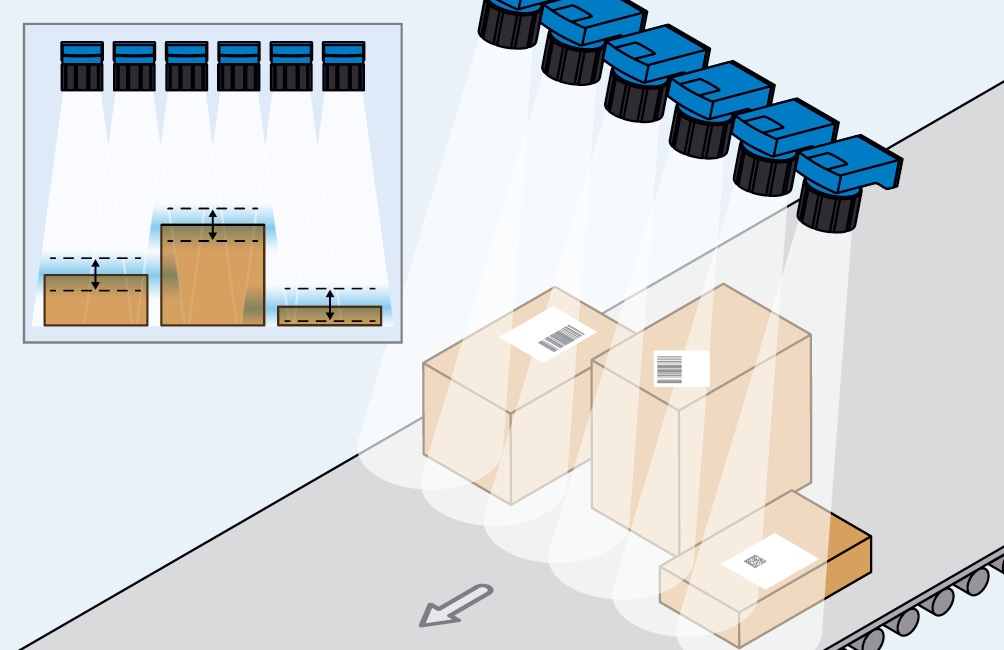

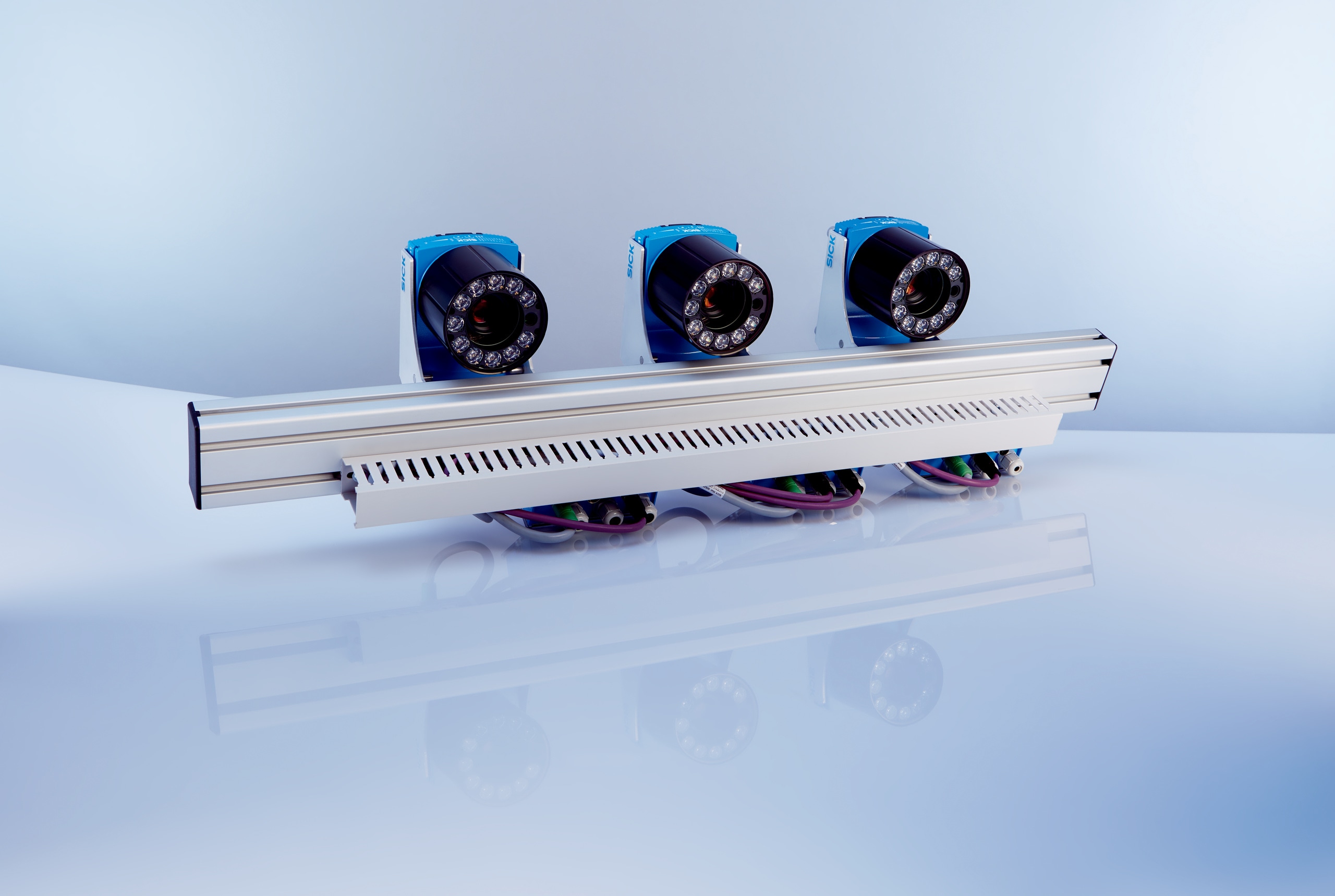

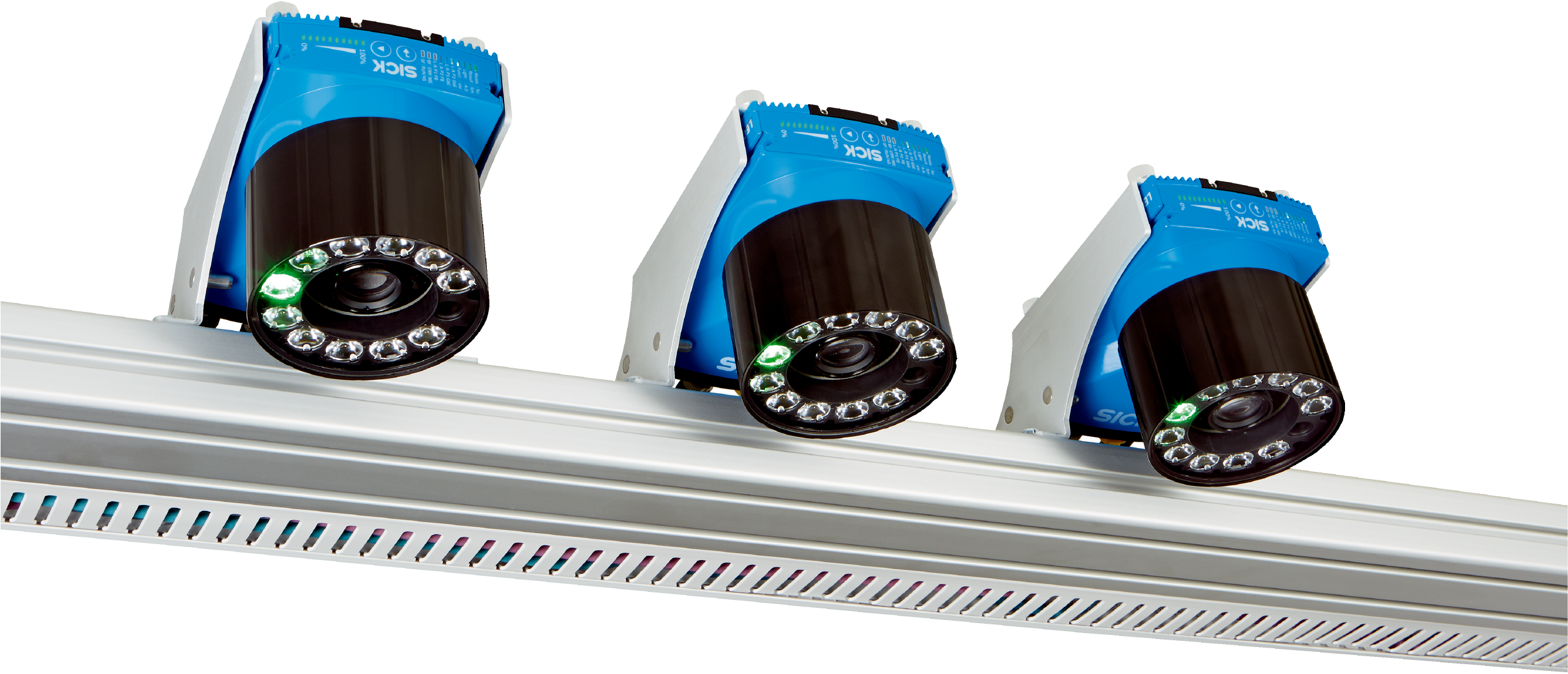

Number of cameras
Lector65x: 1 ... 4
Object infeed and outfeed
Automatic
Dimensions, system (L x W x H)
Customized
Enclosure rating
IP64 (DIN 40 050)
Protection class
III

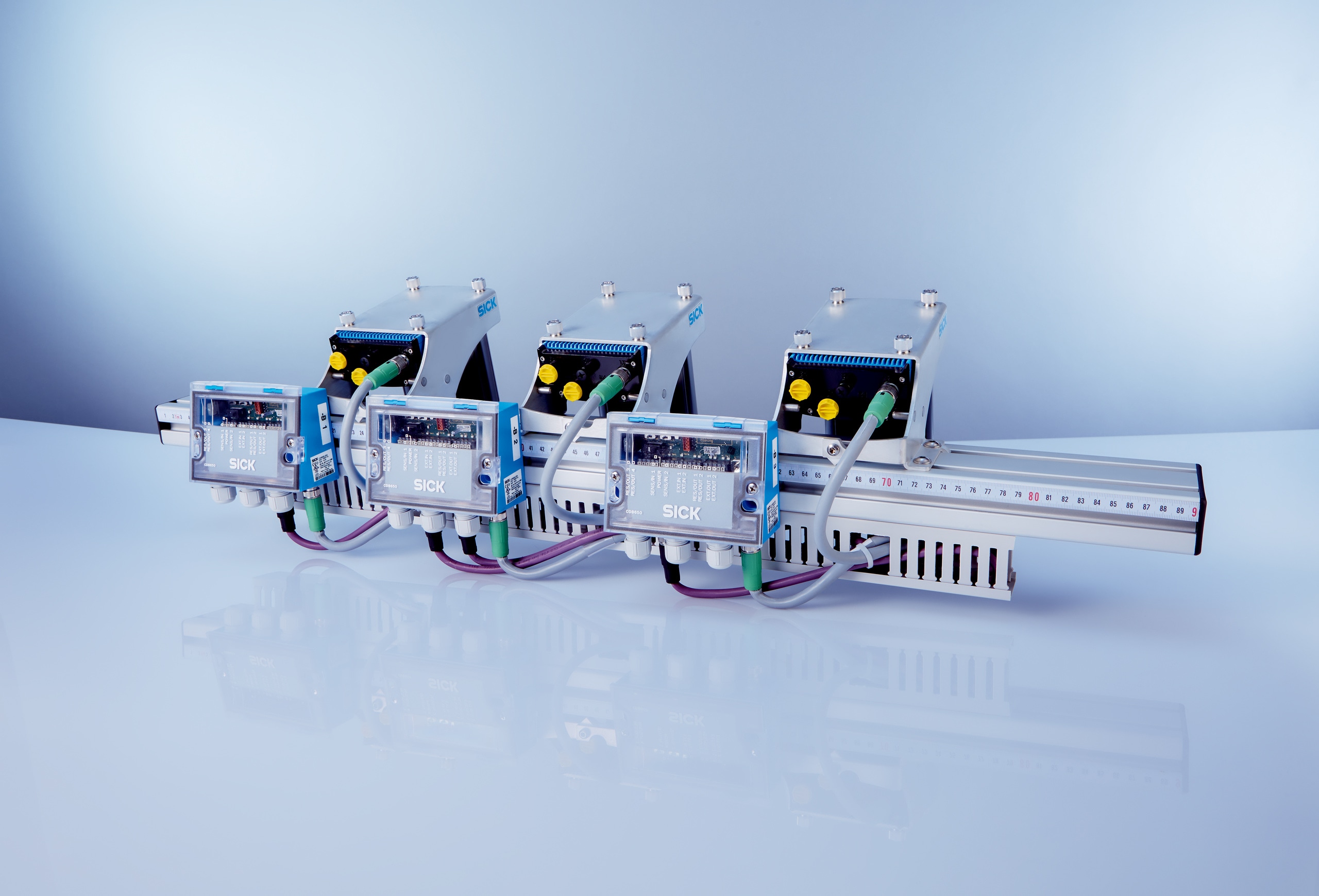

Connection modules
CDM420 / CDB650
Supply voltage
24 V DC
Power consumption
20 W, ± 20 % per Lector65x (not included: connectivity, lightswitch, etc.)
Code types
1D2D4-state
1D code types
Interleaved 2 of 5CodabarCode 128Code 32Code 39Code 93GS1 DataBarGS1-128 / EAN 128PharmacodeUPC / GTIN / EAN
2D code types
Data Matrix ECC200GS1 Data-MatrixMaxiCodePDF417QR codeMaxi-Code
Code resolution
0.2 mm ... 1 mm
Transport speed
0 m/s ... 3 m/s, depending on application

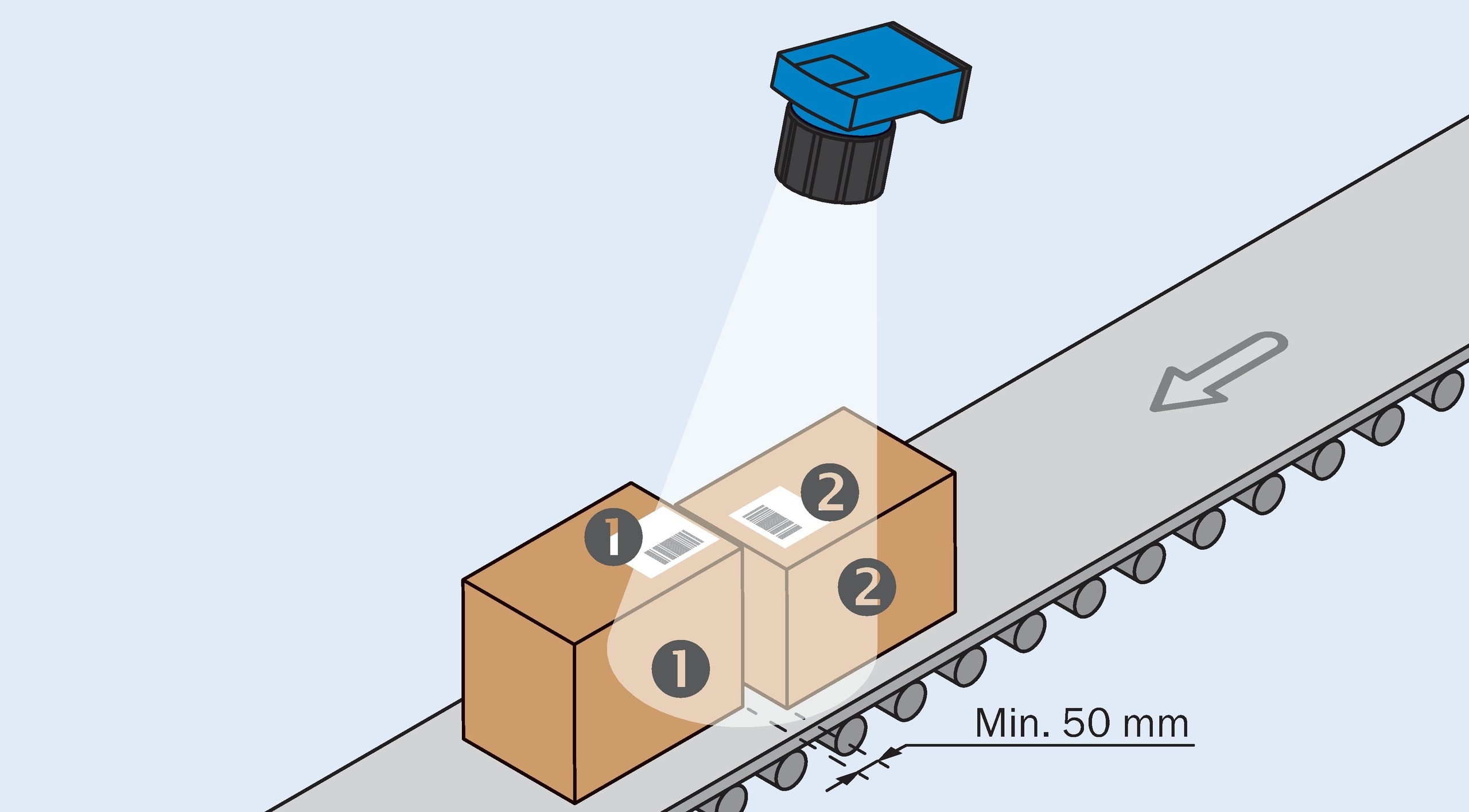

Minimum object distance
Length of reading field
Side-by-side
✔
Touching objects
✔
Type
RS-232, RS-422/-485
Number
1, 1
Remark
Via Lector65x
Optical indicators
21 LEDs (10 x status display, 10 x LED bar graph, 1 green feedback spot)
Memory card
Micro SD memory card (flash card) max. 16 GB, optional
Ambient operating temperature
0 °C ... +40 °C
Ambient temperature, storage
–20 °C ... +70 °C
Permissible relative humidity
90 %, Non-condensing
Electromagnetic compatibility (EMC)
EN 61000-6-4 (2007-01) + A1 (2011-03)
Ambient light immunity
2,000 lx, on code
Items supplied
Lector65x (1 x ... 4 x)Optics (1 x ... 4 x)Mounting bracket (1 x ... 4 x)CDB650 (1 x ... 4 x)Photoelectric sensorCables
Laser class
1M (IEC 60825-1:2014), complies with 21 CFR 1040.10 except for the conformance according to “Laser Notice No. 50” from June 24, 2007
ECLASS 5.1.4
27280190
ECLASS 6.0
27280190
ECLASS 7.0
27280190
ECLASS 8.0
27280190
ECLASS 9.0
27280190
ECLASS 10.0
27280190
ECLASS 11.0
27280190
ECLASS 12.0
27280190
ECLASS 13.0
27280190
ECLASS 14.0
27280190
ECLASS 15.0
27280190
ETIM 6.0
EC002550
ETIM 7.0
EC002550
ETIM 8.0
EC002550
ETIM 9.0
EC002550
ETIM 10.0
EC002550
UNSPSC 091201.0
43211701
UNSPSC 100501.0
43211701
UNSPSC 111201.0
43211701
UNSPSC 120901.0
43211701
UNSPSC 131201.0
43211701
UNSPSC 140801.0
43211701
UNSPSC 151101.0
43211701
UNSPSC 160901.0
43211701
UNSPSC 171001.0
43211701
UNSPSC 180801.0
43211701
UNSPSC 190501.0
43211701
UNSPSC 200601.0
43211701
UNSPSC 210901.0
43211701
UNSPSC 220601.0
43211701
UNSPSC 230701.0
43211701
UNSPSC 240301.0
43211701
UNSPSC 250901.0
43211701
UNSPSC 260801.0
43211701
