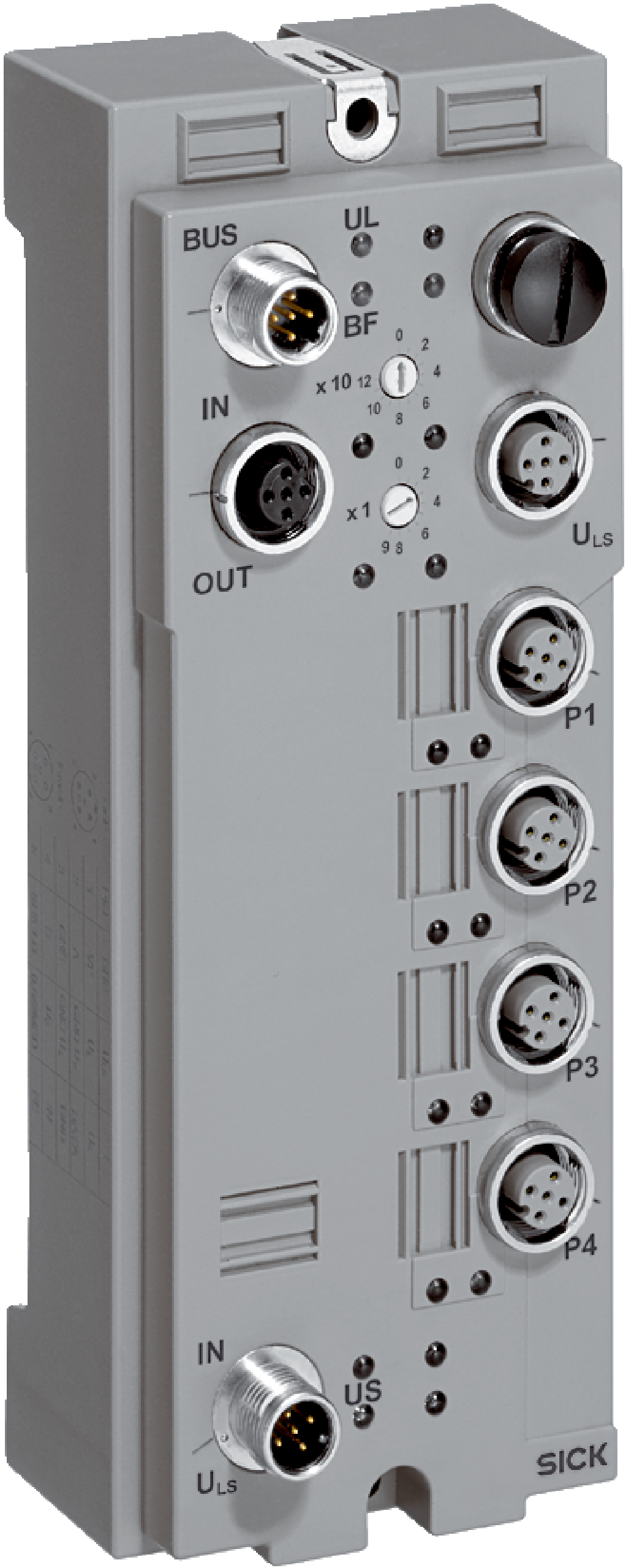

Integration modules and adapters | Fieldbus modules | IOLSHPB-P3104R01 | Description: Number of IO-Link ports: 4; Communication mode: COM1/COM2; IO-Link version: IO-Link V1.0; Switching input: PNP; Supply voltage Vs, IO-Link ports: DC 24 V; Current loading: 800 mA; Data transmission rate: Max. 12 MBaud, Autobaud; Address space occupation: 1 bis 126; Connection type: Connector M12; Connection type, IO-Link ports: Connector M12, 5-pin; Suppyl voltage Vs, module: DC 18 ... 30 V; Power consumption: Typ. 75 mA / max. 100 mA (at UL with DC 24 V), Typ. 25 mA + sensor current / max. 80
Product segment
Integration modules and adapters
Product
Fieldbus modules
Description
Number of IO-Link ports: 4; Communication mode: COM1/COM2; IO-Link version: IO-Link V1.0; Switching input: PNP; Supply voltage Vs, IO-Link ports: DC 24 V; Current loading: 800 mA; Data transmission rate: Max. 12 MBaud, Autobaud; Address space occupation: 1 bis 126; Connection type: Connector M12; Connection type, IO-Link ports: Connector M12, 5-pin; Suppyl voltage Vs, module: DC 18 ... 30 V; Power consumption: Typ. 75 mA / max. 100 mA (at UL with DC 24 V), Typ. 25 mA + sensor current / max. 80
Enclosure rating
IP65, IP67
Dimensions (W x H x L)
70 mm x 40 mm x 178 mm
ECLASS 5.0
27242202
ECLASS 5.1.4
27242602
ECLASS 6.0
27242602
ECLASS 6.2
27242602
ECLASS 7.0
27242602
ECLASS 8.0
27242602
ECLASS 8.1
27242602
ECLASS 9.0
27242602
ECLASS 10.0
27242602
ECLASS 11.0
27242602
ECLASS 12.0
27242602
ETIM 5.0
EC001597
ETIM 6.0
EC001597
ETIM 7.0
EC001597
ETIM 8.0
EC001597
UNSPSC 16.0901
32151705
