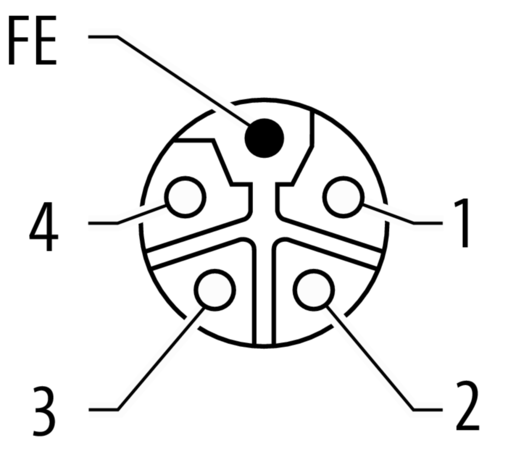

Digital inputs/outputs IO-Link Master V1.1 M12 Power, 5-pole, L-coded M12, 5-pole, A-coded Housing fully potted. Connection cables are in the online shop...
Kaal
0,470 kg
Päritoluriik
DE
Mudeli tähistus
IMPACT67 Pro EC DIO8 IOL8 M12L 5P
Norm operating voltage
IEC/EN 61131-2
Operating voltage US DC
24 V
Total current US max.
16 A
Operating voltage UA DC
24 V
Total current UA max.
16 A
Sensor current US per input max.
2 A
Current carrying capacity max.
10 A
Short-circuit protected
Yes
Overload resistant
Yes
Type input
for 3-wire sensors or mechanical switches, IO-Link Devices, PNP
Output current per pin max.
2 A
Max. current output per port
4 A
