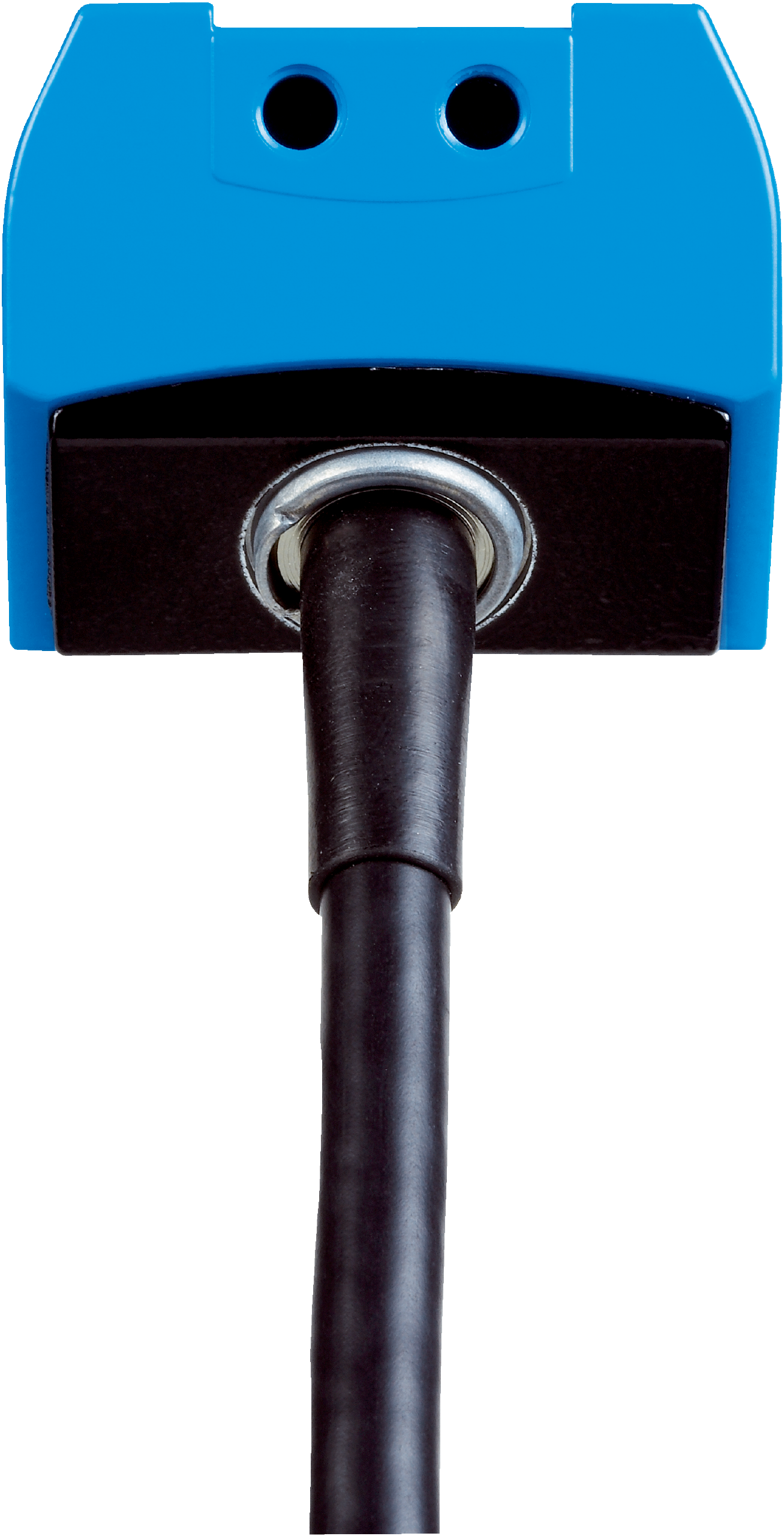

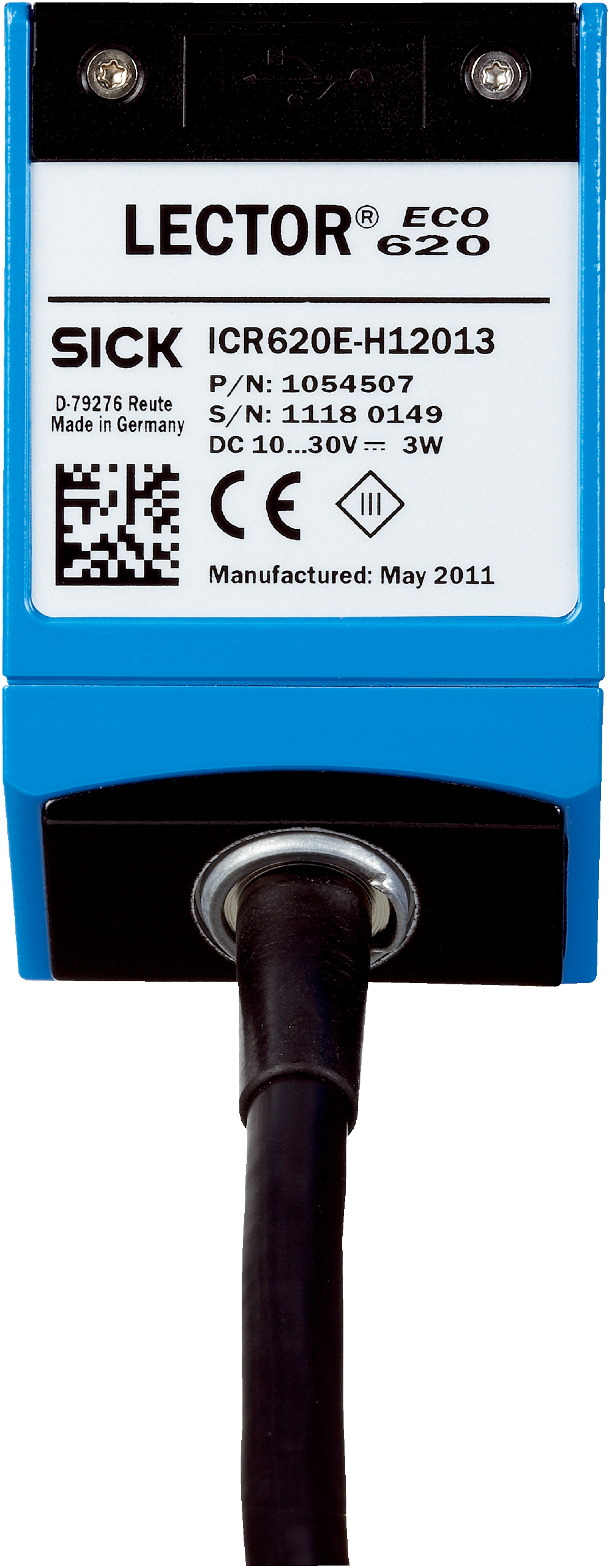

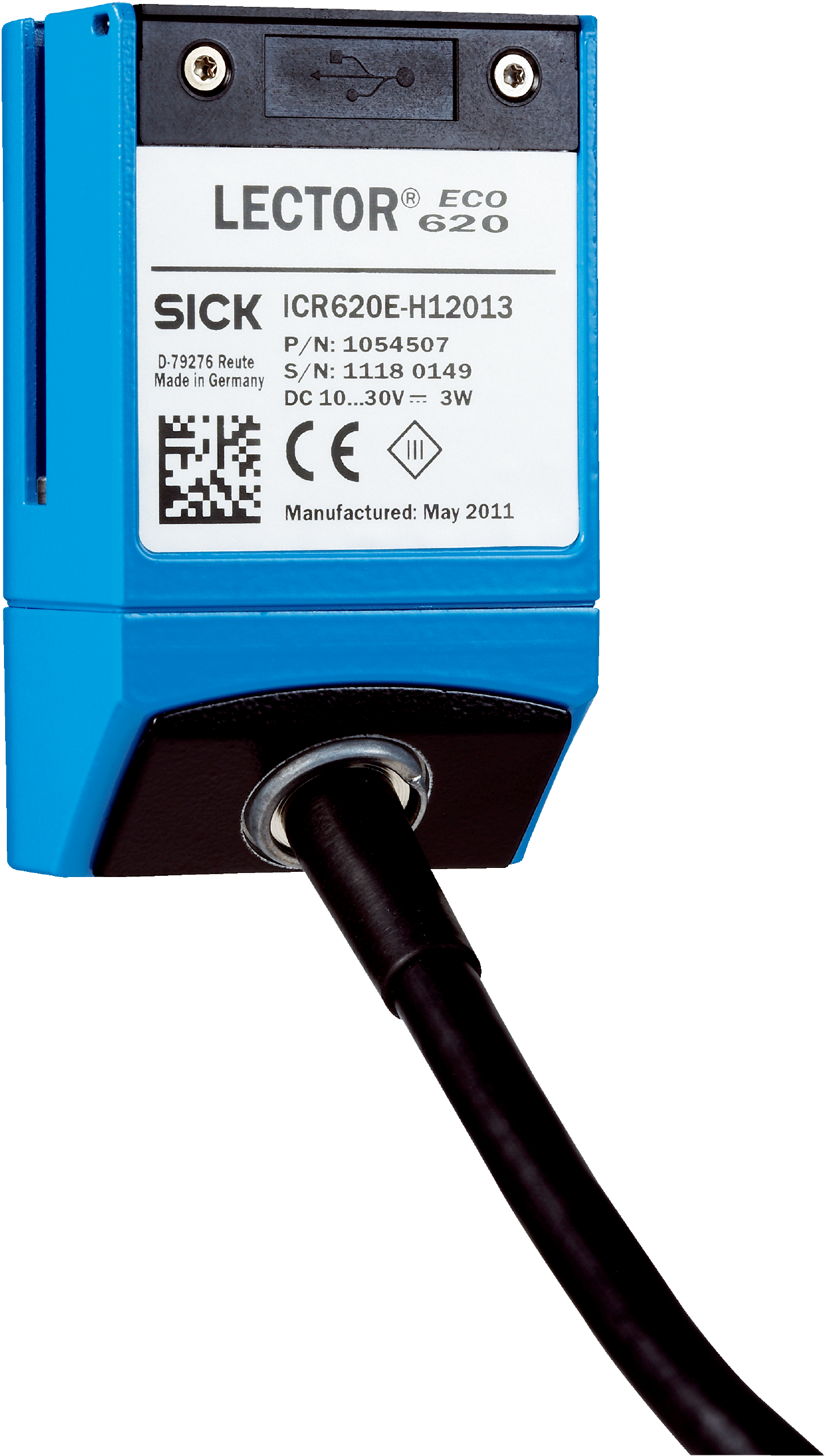

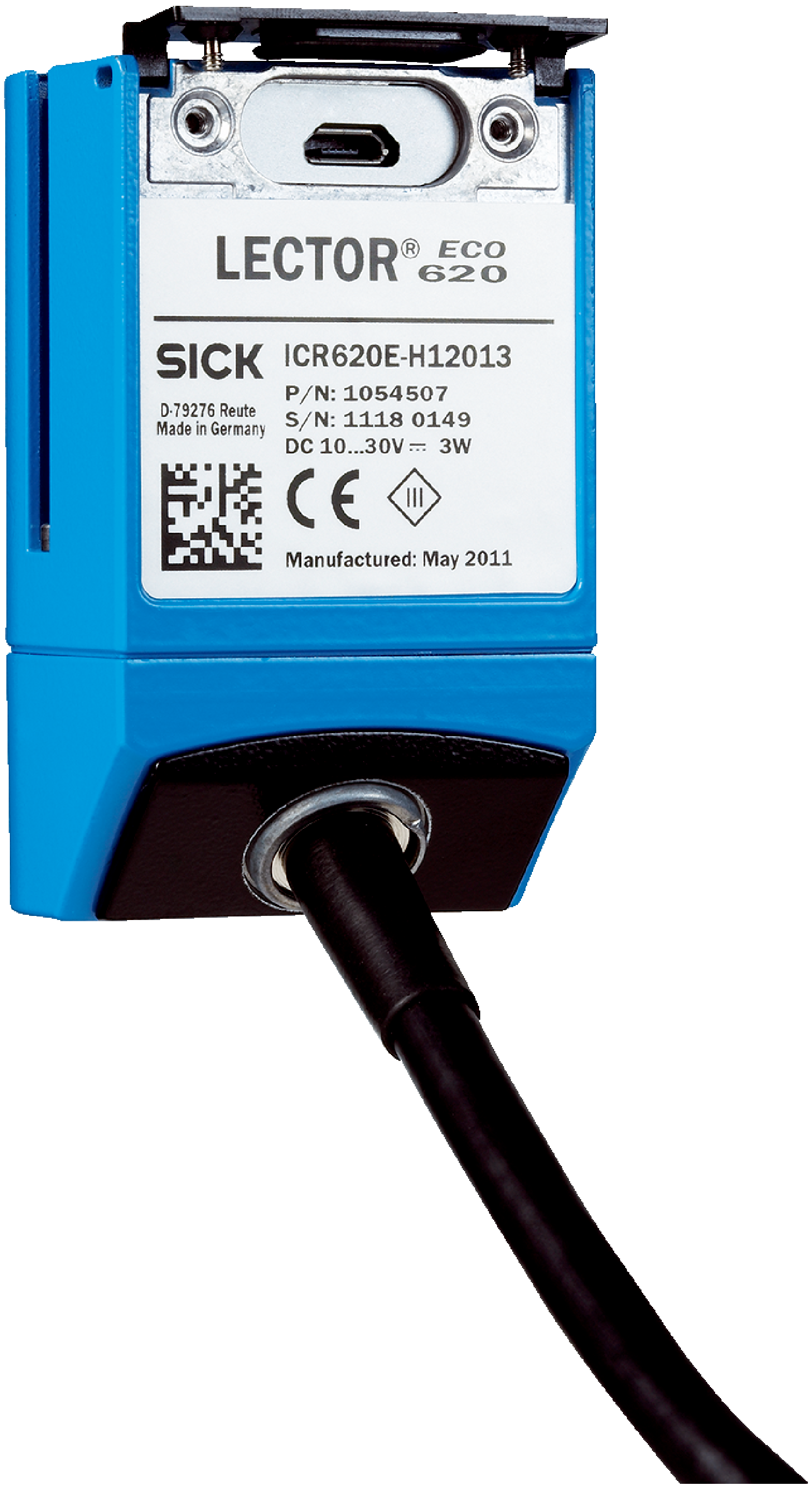

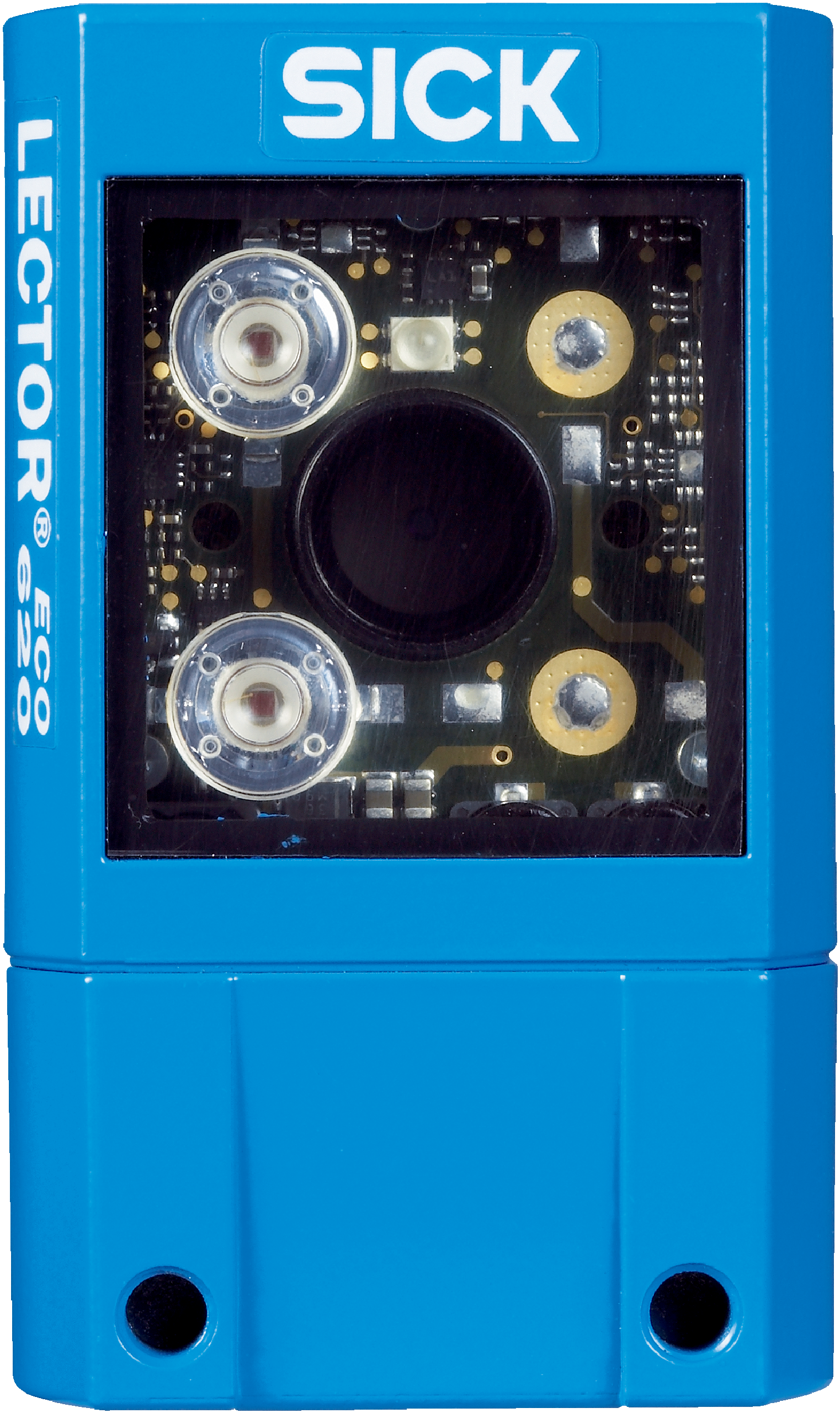

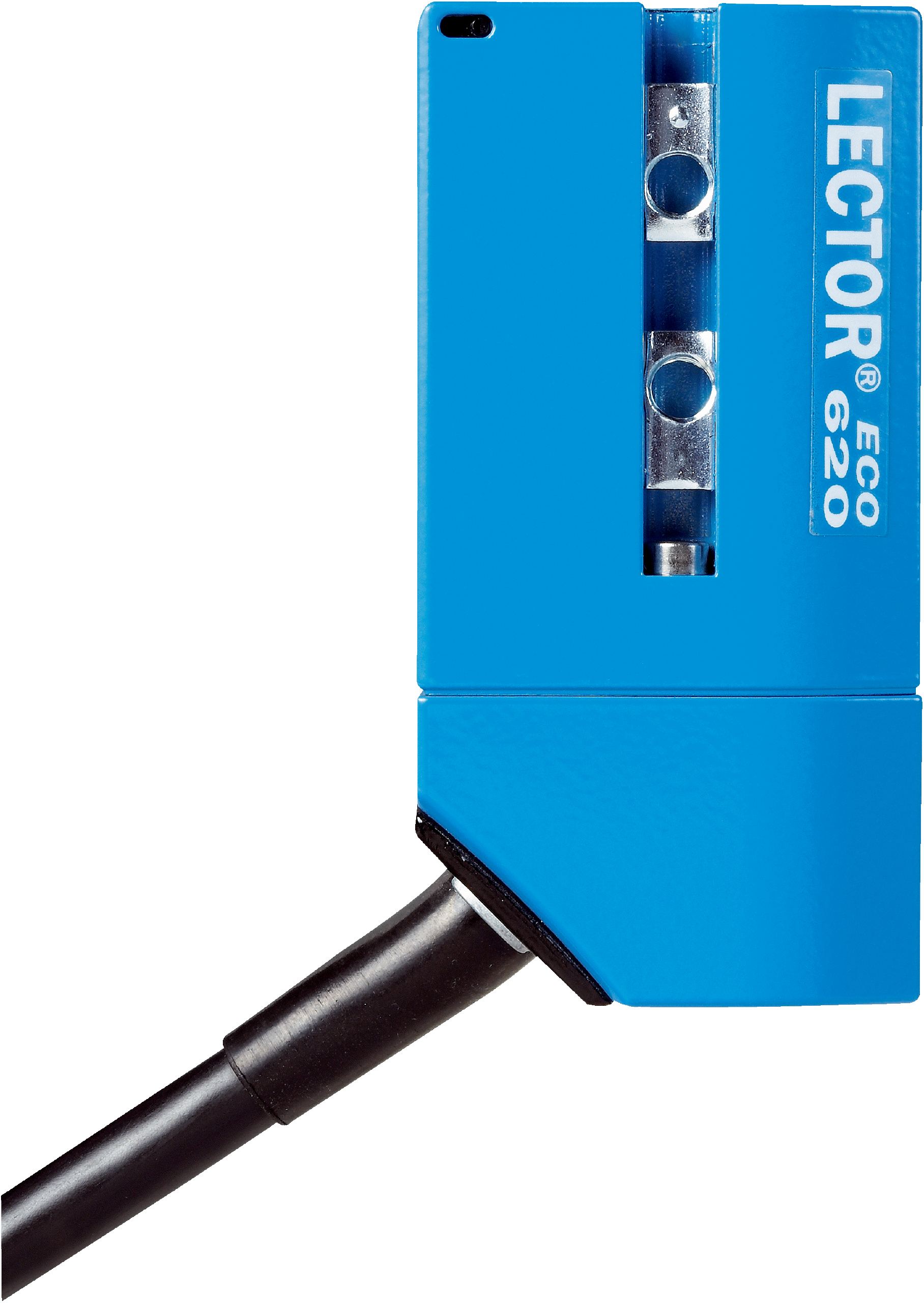

Image-based code readers | Lector62x | ICR620E-H12013 ECO | Variant: Complete device | Optical focus: Adjustable focus (electrical) | Sensor resolution: 752 px x 480 px (WVGA) | Illumination color: Red | Focal length: 7 mm | Communication interface: PROFINET, EtherCAT®, Serial, CAN, CANopen, PROFIBUS DP | Cold storage applications: no | Note: Additional accessories may be necessary for some communication interfaces (details available online)
Variant
Complete device
Optical focus
Adjustable focus (electrical)
Sensor
CMOS monochrome
Sensor resolution
752 px x 480 px (WVGA)
Illumination
Integrated
Illumination color
Red, LED, Visible, 617 nm
LED class
1 (IEC 62471:2006-07, EN 62471:2008-09)
Feedback spot
LED, Visible, green, 525 nm
Laser class
EN 60825-1:2014+A11:2021
Focal length
7 mm
Scanning frequency
25 Hz, WVGA resolution
Code resolution
≥ 0.1 mm1)
Working range
40 mm ... 1,500 mm2)
Connection type
1 x 15-pin D-Sub HD male connector (0.9 m)
Supply voltage
10 V DC ... 30 V DC
Power consumption
Typ. 3 W
Output current
≤ 100 mA
Housing material
Aluminum die cast
Housing color
Light blue (RAL 5012)
Window material
Glass
Enclosure rating
IP65 (EN 60529 (1991-10), EN 60529/A2 (2002-02))
Protection class
III
Electrical safety
EN 60950-1 (2006-04) / EN 60950-1/A11 (2009-03)
Weight
170 g
Dimensions (L x W x H)
71 mm x 43 mm x 35.6 mm1)
MTBF
75,000 h
Readable code structures
1D codes, Stacked, 2D codes
Bar code types
GS1-128 / EAN 128, UPC / GTIN / EAN, Interleaved 2 of 5, Pharmacode, GS1 DataBar, Code 39, Code 128, Codabar, Code 32, Code 93
2D code types
Data Matrix ECC200, GS1 Data-Matrix, PDF417, PDF417 Truncated, QR code
No. of codes per reading interval
1 ... 50
No. of characters per reading interval
500 (for multiplexer function in CAN operation)
Internal image storage
135 MB
Transport speed
2 m/s
PROFINET
✔
EtherCAT®
✔
Serial
✔ , RS-232, RS-422
CAN
✔
Function
SICK CAN sensor network CSN (CAN controller/CAN device, multiplexer/server)
CANopen
✔
Data transmission rate
20 kbit/s ... 1 Mbit/s
PROFIBUS DP
✔
Type of fieldbus integration
Optional over external fieldbus module CDF600-2
Digital inputs
4 (“Sensor 1”, “Sensor 2”, 2 inputs via optional parameter storage CMC600 in CDB620/CDM420)
Digital outputs
4 (“Result 1”, “Result 2”, 2 outputs via optional parameter storage CMC600 in CDB620/CDM420)
Reading pulse
Digital inputs, non-powered, serial interface, CAN, auto pulse, presentation mode
Optical indicators
16 LEDs (5 x status display, 10 x LED bar graph, 1 green feedback spot)
Acoustic indicators
Beeper/buzzer (can be switched off, can be assigned a function to signal a result)
Control elements
2 buttons (choose and start/stop functions)
Operator interfaces
Web server
Configuration software
SOPAS ET
Data storage and retrieval
Image and data storage via microSD memory card and external FTP
EncoderFrequency
Max. 300 Hz
External illumination control
Via digital output (max. 24 V trigger)
Electromagnetic compatibility (EMC)
EN 61000-6-2 (2006-03) / EN 61000-6-2 (2009-05)
Vibration resistance
EN 60068-2-6:2008-02
Shock resistance
EN 60068-2-27:2009-05
Ambient operating temperature
0 °C ... +50 °C
Storage temperature
–20 °C ... +70 °C
Permissible relative humidity
90 %, Non-condensing
Ambient light immunity
2,000 lx, on code
EU declaration of conformity
✔
UK declaration of conformity
✔
ACMA declaration of conformity
✔
China RoHS
✔
cULus certificate
✔
KC Mark certificate
✔
Profinet certificate
✔
BIS registration
✔
4Dpro
✔
ECLASS 5.0
27280103
ECLASS 5.1.4
27280103
ECLASS 6.0
27280103
ECLASS 6.2
27280103
ECLASS 7.0
27280103
ECLASS 8.0
27280103
ECLASS 8.1
27280103
ECLASS 9.0
27280103
ECLASS 10.0
27280103
ECLASS 11.0
27280103
ECLASS 12.0
27280103
ETIM 5.0
EC002550
ETIM 6.0
EC002550
ETIM 7.0
EC002999
ETIM 8.0
EC002999
UNSPSC 16.0901
43211701
