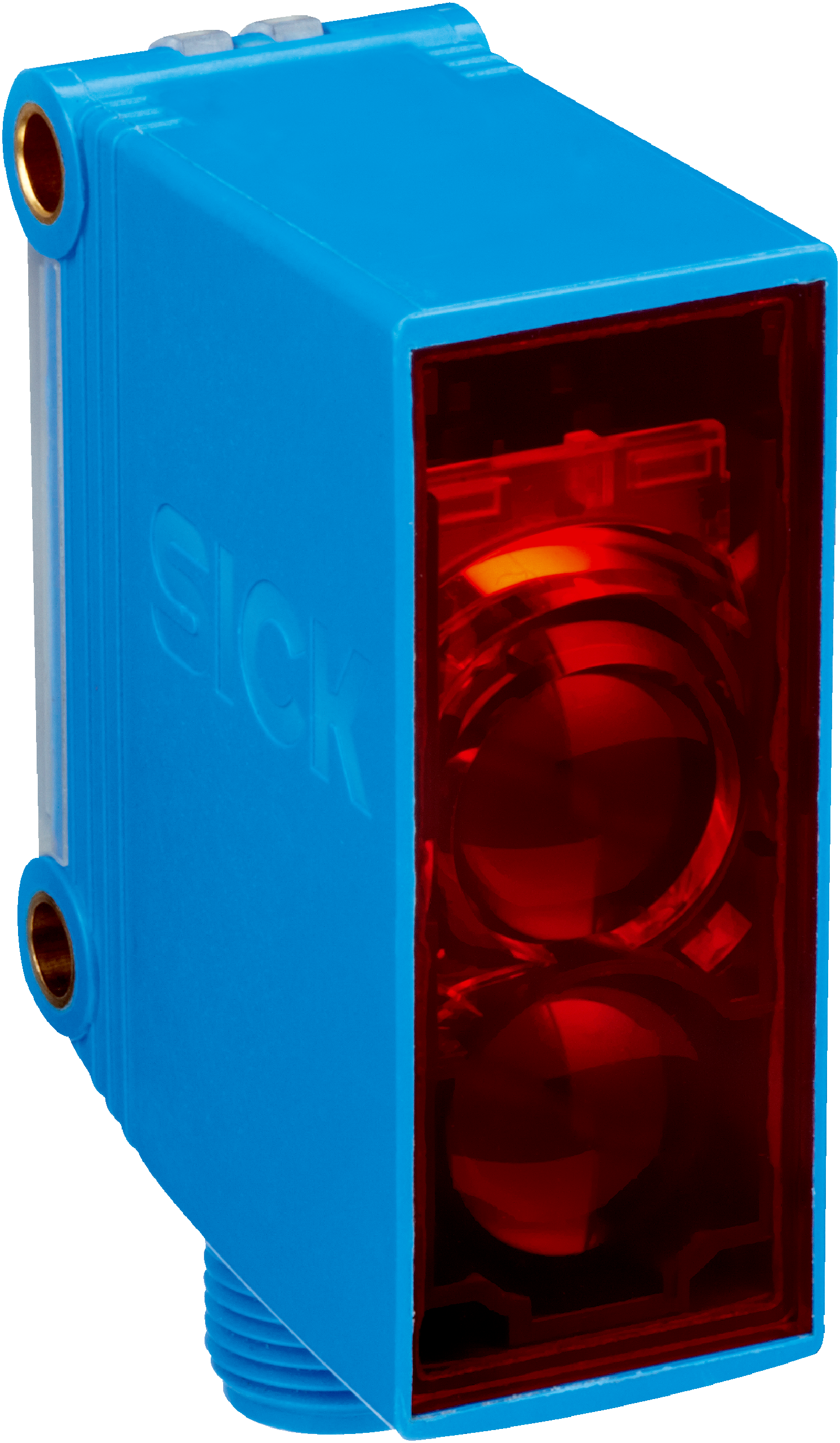

Photoelectric sensors | G10 | GTE10-F4221P14 | Functional principle: Photoelectric proximity sensor | Functional principle detail: Energetic | Switching output: PNP | Switching mode: Light/dark switching | Connection type: Male connector M12, 4-pin | Light source: LED | Adjustment: Potentiometer | Communication interface: - | Included with delivery: 50 x GTE10-F4221 (1102212), 50 x BEF-G10DC01 (2071258)
Functional principle
Photoelectric proximity sensor
Functional principle detail
Energetic
Dimensions (W x H x D)
20 mm x 50 mm x 39 mm
Housing design (light emission)
Rectangular
Sensing range max.
20 mm ... 2,000 mm1)
Sensing range
40 mm ... 1,400 mm1)
Type of light
Infrared light
Light source
LED2)
Light spot size (distance)
Ø 57 mm (1,500 mm)
Wave length
850 nm
Adjustment
Potentiometer, 270°
Supply voltage UB
10 V DC ... 30 V DC1)
Ripple
< 5 Vpp2)
Current consumption
20 mA
Switching output
PNP
Output function
Complementary
Switching mode
Light/dark switching
Switching mode selector
Selectable via light/dark selector
Output current Imax.
≤ 100 mA
Response time
≤ 500 µs3)
Switching frequency
1,000 Hz4)
Connection type
Male connector M12, 4-pin
Circuit protection
A5)B6)C7)D8)
Protection class
III
Weight
90 g
Special device
✔
Housing material
Plastic, ABS/PMMA
Enclosure rating
IP67
Items supplied
50 x GTE10-F4221 (1102212), 50 x BEF-G10DC01 (2071258)
Electromagnetic compatibility (EMC)
EN 60947-5-2
Ambient operating temperature
–30 °C ... +60 °C
Ambient temperature, storage
–40 °C ... +70 °C
UL File No.
NRKH.E348498 & NRKH7.E348498
More standards
UL3259)
EU declaration of conformity
✔
UK declaration of conformity
✔
ACMA declaration of conformity
✔
Moroccan declaration of conformity
✔
China RoHS
✔
cULus certificate
✔
Photobiological safety (DIN EN 62471) certificate
✔
ECLASS 5.0
27270903
ECLASS 5.1.4
27270903
ECLASS 6.0
27270903
ECLASS 6.2
27270903
ECLASS 7.0
27270903
ECLASS 8.0
27270903
ECLASS 8.1
27270903
ECLASS 9.0
27270903
ECLASS 10.0
27270904
ECLASS 11.0
27270904
ECLASS 12.0
27270903
ETIM 5.0
EC001821
ETIM 6.0
EC001821
ETIM 7.0
EC002719
ETIM 8.0
EC002719
UNSPSC 16.0901
39121528
