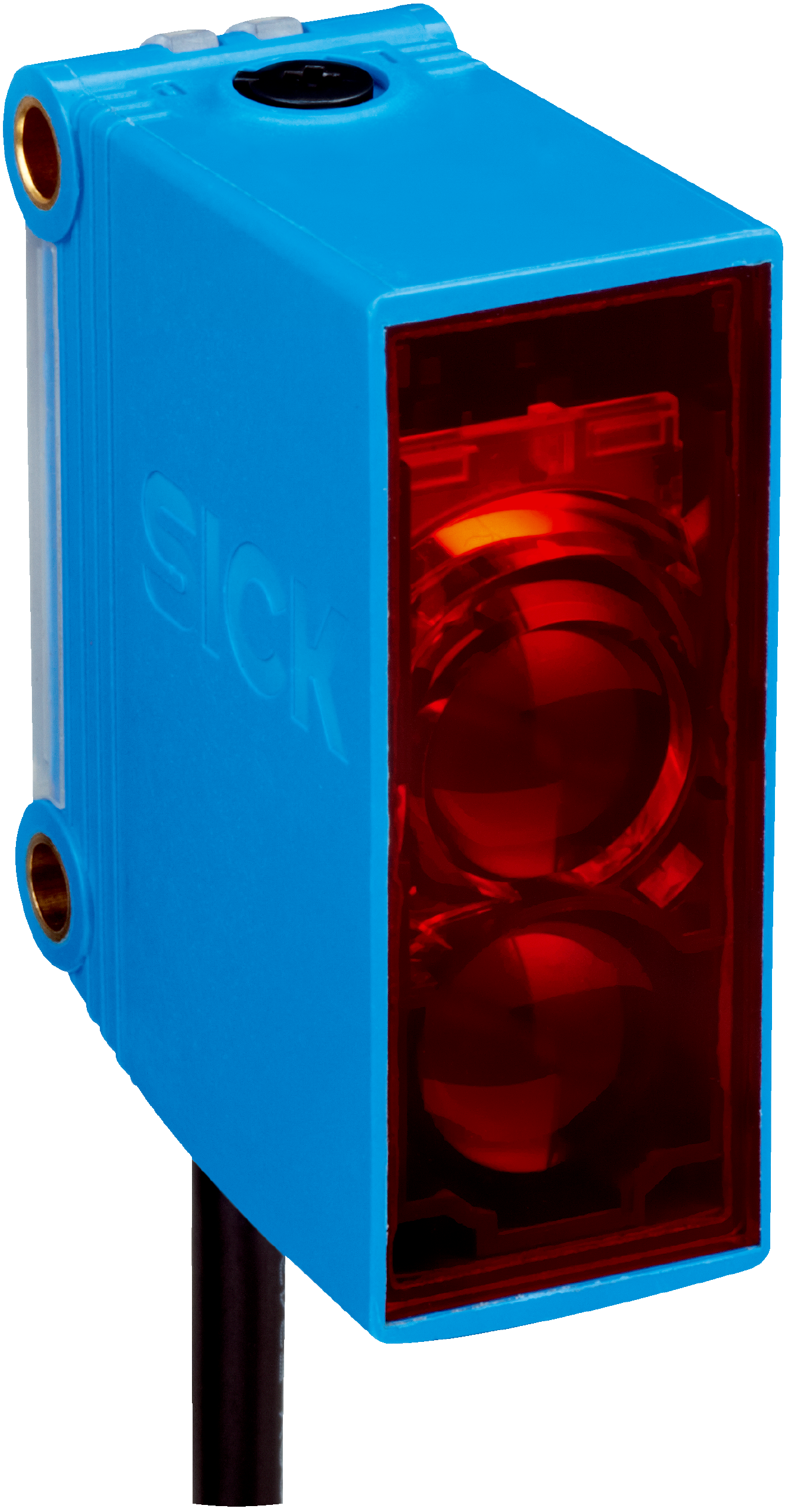

Photoelectric sensors | G10 | GTB10-N1212 | Functional principle: Photoelectric proximity sensor | Functional principle detail: Background suppression | Switching output: NPN | Switching mode: Light/dark switching | Connection type: Cable, 3-wire, 2 m | Light source: PinPoint LED | Adjustment: Potentiometer | Communication interface: - | Included with delivery: Mounting bracket BEF-G10DC01
Functional principle
Photoelectric proximity sensor
Functional principle detail
Background suppression
Dimensions (W x H x D)
20 mm x 50 mm x 39 mm
Housing design (light emission)
Rectangular
Sensing range max.
20 mm ... 950 mm1)
Type of light
Visible red light
Light source
PinPoint LED2)
Light spot size (distance)
Ø 8 mm (700 mm)
Wave length
625 nm
Adjustment
Potentiometer, 5 turns
Supply voltage UB
10 V DC ... 30 V DC1)
Ripple
< 5 Vpp2)
Current consumption
20 mA
Switching output
NPN
Switching mode
Light/dark switching
Switching mode selector
Selectable via light/dark selector
Output current Imax.
≤ 100 mA
Response time
≤ 500 µs3)
Switching frequency
1,000 Hz4)
Connection type
Cable, 3-wire, 2 m5)
Cable material
Plastic, PVC
Conductor cross section
0.14 mm²
Circuit protection
A6)B7)C8)D9)
Protection class
III
Weight
90 g
Housing material
Plastic, ABS/PMMA
Enclosure rating
IP67
Items supplied
Mounting bracket BEF-G10DC01
Electromagnetic compatibility (EMC)
EN 60947-5-2
Ambient operating temperature
–30 °C ... +60 °C
Ambient temperature, storage
–40 °C ... +70 °C
UL File No.
NRKH.E348498 & NRKH7.E348498
More standards
UL32510)
EU declaration of conformity
✔
UK declaration of conformity
✔
ACMA declaration of conformity
✔
Moroccan declaration of conformity
✔
China RoHS
✔
cULus certificate
✔
Photobiological safety (DIN EN 62471) certificate
✔
ECLASS 5.0
27270904
ECLASS 5.1.4
27270904
ECLASS 6.0
27270904
ECLASS 6.2
27270904
ECLASS 7.0
27270904
ECLASS 8.0
27270904
ECLASS 8.1
27270904
ECLASS 9.0
27270904
ECLASS 10.0
27270904
ECLASS 11.0
27270904
ECLASS 12.0
27270903
ETIM 5.0
EC002719
ETIM 6.0
EC002719
ETIM 7.0
EC002719
ETIM 8.0
EC002719
UNSPSC 16.0901
39121528
