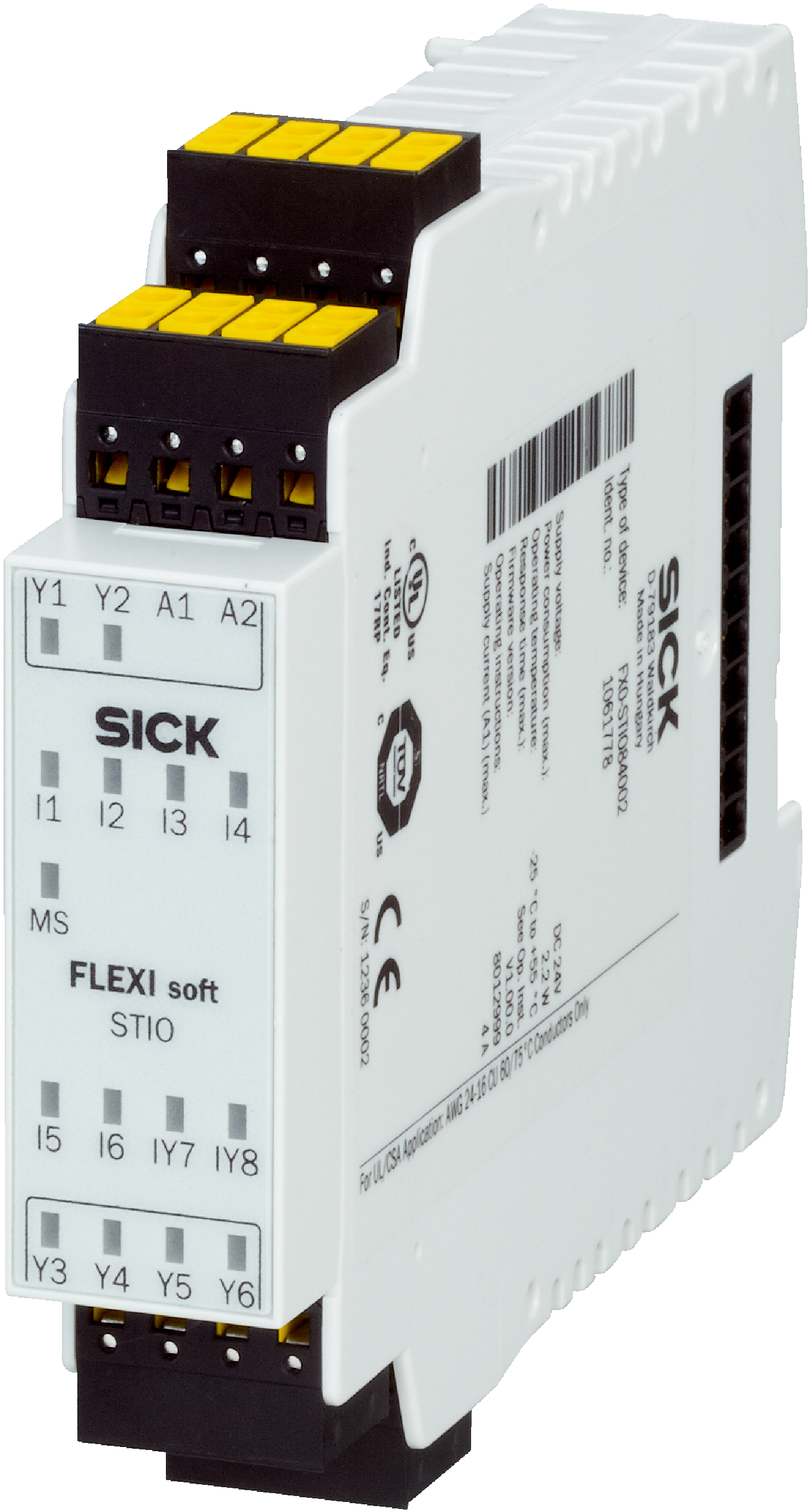

Safety controllers | Flexi Soft | FX0-STIO68012 | Module: I/O module | Non-safe inputs: 6-8 | Non-safe outputs: 6-8 | Flexi Loop-compatible: no | Connection type: Plug-in spring terminals | Protective coating for more challenging ambient conditions: yes
Module
I/O module
Configuration method
Via software (Flexi Soft Designer, Safe EFI-pro System: Safety Designer)
Specialty
Protective coating for more challenging ambient conditions (e.g., resistance to sulfur).
Number of non-safe inputs
6-81)
Number of non-safe outputs
6-81)
Connection type
Plug-in spring terminals
Protection class
III (EN 61140)
Internal power consumption
≤ 1.5 W1)
Input voltage HIGH
13 V DC ... 30 V DC
Input voltage LOW
–5 V DC ... 5 V DC
Input current HIGH
2.4 mA ... 3.8 mA
Input current LOW
–2.5 mA ... 2.1 mA
Voltage supply
Via A1, A2
Supply voltage
24 V DC (16.8 V DC ... 30 V DC)
Type of supply voltage
PELV or SELV2)
Type of output
PNP semiconductors, short-circuit protected
Output voltage HIGH
16 V DC ... 30 V DC
Output current
≤ 500 mA
Dimensions (W x H x D)
22.5 mm x 96.5 mm x 120.6 mm
Weight
139 g (± 5 %)
Enclosure rating
IP20 (EN 60529)
Ambient operating temperature
–25 °C ... +55 °C
Storage temperature
–25 °C ... +70 °C
Air humidity
≤ 95 %, Non-condensing
Single gas resistance (sulfur dioxide)
25 ppm, 21 days, 25 °C (IEC 60068-2-42 - Kc)
Mixed gas resistance
100 ppb - H2S2000 ppb - NO2100 ppb - CI22000 ppb - SO221 days, 30 °C (IEC 60068-2-60 Ke)
ECLASS 5.0
27243001
ECLASS 5.1.4
27243101
ECLASS 6.0
27243101
ECLASS 6.2
27243101
ECLASS 7.0
27243101
ECLASS 8.0
27243101
ECLASS 8.1
27243101
ECLASS 9.0
27243101
ECLASS 10.0
27243101
ECLASS 11.0
27243101
ECLASS 12.0
27243101
ETIM 5.0
EC001449
ETIM 6.0
EC001449
ETIM 7.0
EC001449
ETIM 8.0
EC001449
UNSPSC 16.0901
32151705
EU declaration of conformity
✔
UK declaration of conformity
✔
ACMA declaration of conformity
✔
China RoHS
✔
CCC certificate
✔
cULus certificate
✔
