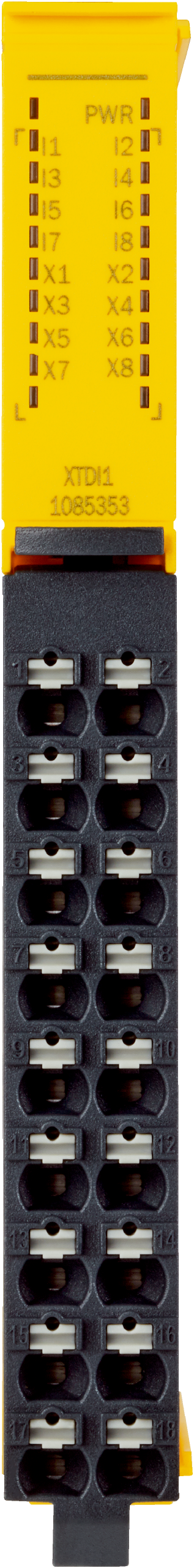

Safety controllers | Flexi IO | FLX3-XTDI100 | Module: I/O module | Short designation: XTDI1 | Safety inputs: 8 | Test outputs: 8 | Connection type: Front connector with spring terminals | Safe series connection with Flexi Loop: Yes | Items supplied: I/O module, Front connector with 18 terminals, safety instruction, Operating instructions for download
Module
I/O module
Description
The I/O module is a safe digital input/output expansion module.
Security Level
SL-C 1 (IEC 62443-4-2)
Configuration software
Safety Designer
Items supplied
I/O moduleFront connector with 18 terminalsSafety instructionOperating instructions for download
Safety integrity level
SIL 3 (IEC 61508)
Category
Category 4 (ISO 13849-1)
Performance level
PL e (ISO 13849-1)
PFHD(mean probability of a dangerous failure per hour)
4 × 10-91)
TM(mission time)
20 years (ISO 13849-1)
Monitoring of the connected safety devices
✔
Testing of the connected safety devices and the wiring (short-circuit detection)
✔
Use of the test outputs as non-safe outputs
✔
Safe series connection with Flexi Loop
✔
Front connector
1 front connector with 18 terminals
Safety inputs
8
Test outputs
8
Display elements
LEDs
Protection class
III (EN 61140)
Interference resistance
EN 61000-6-2
Interference emission
EN 61000-6-4
Voltage supply
The voltage supply of the extension modules is maintained via the backplane bus
Power consumption at nominal voltage (without outputs)
2.4 W (DC)
Power loss
≤ 3.3 W
Dimensions (W x H x D)
14 mm x 124.7 mm x 85.5 mm
Contamination rating
2 (IEC 61010-1)
Control device type
Open device (IEC 61010-2-201)
Weight
104 g (± 5 %)
Mounting
Mounting on a 35 mm × 7.5 mm mounting rail in accordance with IEC 60715
Enclosure rating
IP20 (EN 60529)
Ambient operating temperature
–25 °C ... +55 °C1)
Storage temperature
–25 °C ... +70 °C
Air humidity
≤ 95 %, Non-condensing
Vibration resistance
1 g, 5 Hz ... 200 Hz (EN 60068-2-6)
Shock resistance
15 g, 11 ms (EN 60068-2-27)
EU declaration of conformity
✔
UK declaration of conformity
✔
ACMA declaration of conformity
✔
China RoHS
✔
UK-Type-Examination approval
✔
cULus certificate
✔
cTUVus certificate
✔
S Mark certificate
✔
EC-Type-Examination approval
✔
EC-Type-Examination approval (Machinery Directive)
✔
EC-Type-Examination approval (Machinery Regulation)
✔
Third party certificate
✔
Information according to Art. 3 of Data Act (Regulation EU 2023/2854)
✔
Cybersecurity certificate
✔
