Murrelektronik

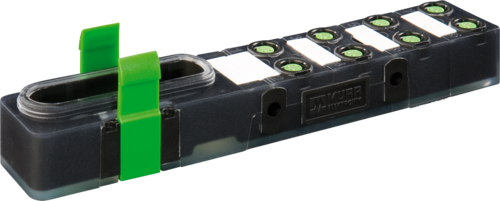

EXACT8, 4XM8, 3 POLE PLUG. CAP, SPRING-TERM.
Prix hors TVA
Demander un devis
4-way, 3-pole Further cable lengths on request. Plastic housings with good resistance against chemicals and oils. The resistance to aggressive media should...
Poids
0,906 kg
Pays d'origine
CZ
Désignation du modèle
MVP8N-LN4D334 10.0M
Operating voltage DC
24 V
Current operating per contact max.
2 A
Total current max.
8 A
Connection cross section max.
1,5 mm²
AWG number max.
16
Connection
Spring clamp terminals FK
Mounting set
M8 x 1
Degree of protection (EN IEC 60529)
IP67
Additional condition protection degree
mounted, screwed
Flame resistance
IEC 60332-1-2
Material housing
Plastic
Mounting method
Schraubgewinde
