Murrelektronik

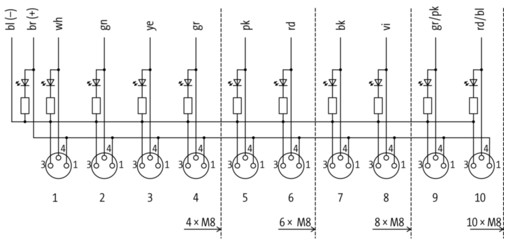

EXACT8, 10XM8, 3 POLE PRE-WIRED CABLE
Price excluding VAT
Request a quote
10-way, 3-pole Further cable lengths on request. Plastic housings with good resistance against chemicals and oils. The resistance to aggressive media should...
Weight
0,727 kg
Country of origin
DE
Model designation
MVP8N-AN10D385 5.0m
Operating voltage DC
24 V
Current operating per contact max.
2 A
Total current max.
8 A
Number of signals per port
1
Mounting set
M8 x 1
Degree of protection (EN IEC 60529)
IP67, IP65
Flame resistance
UL 1581 § 1090, CSA FT2, IEC 60332-2-2
Material housing
Plastic
Mounting method
Schraubgewinde
Operating temperature min.
-20 °C
Operating temperature max.
80 °C
Additional condition temperature range
depending on cable quality
