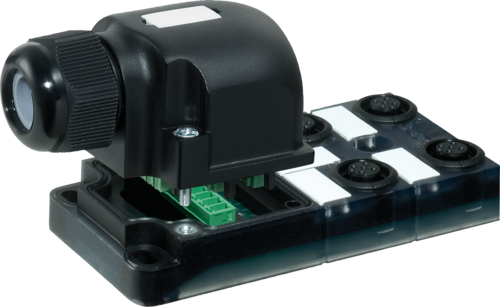

4-way, 5-pole Form PNP Spring clamp plug-in terminals Plastic housings with good resistance against chemicals and oils. The resistance to aggressive media...
Poids
0,157 kg
Pays d'origine
DE
Désignation du modèle
MVP12N-FN4F
Operating voltage DC
24 V
Current operating per contact max.
4 A
Total current max.
8 A
Connection cross section max.
1,5 mm²
AWG number max.
16
Connection
Spring clamp terminals FK
Degree of protection (EN IEC 60529)
IP67, IP65
Flame resistance
flame retardant
Material housing
Plastic
Operating temperature min.
-20 °C
Operating temperature max.
70 °C
Family construction form
M12
