6-way, 5-pole, MOSA PUR/PVC (UL/CSA) 15.0 m potentially separated with LED for digital PNP-signals 24 V DC quick connection elements included
Вес
3,685 kg
Страна происхождения
CZ
Обозначение модели
MVM6-VHB15.0
Operating voltage DC
24 V
Current operating per contact max.
4 A
Total current at 1 time current feed-in max.
8 A
Total current at 2 times current feed-in max.
16 A

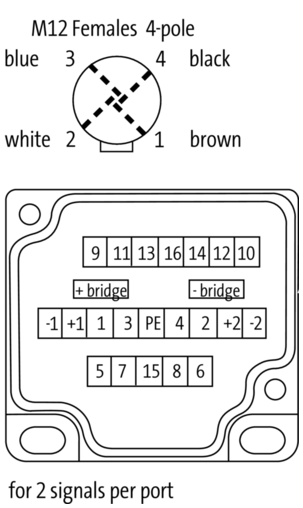

Number of signals per port
2
Connection cross section min.
0,25 mm²
Connection cross section max.
0,5 mm²
Degree of protection (EN IEC 60529)
IP67
Additional condition protection degree
mounted, screwed
Flame resistance
flame retardant
Material housing
Plastic
Height
43 mm
