Murrelektronik

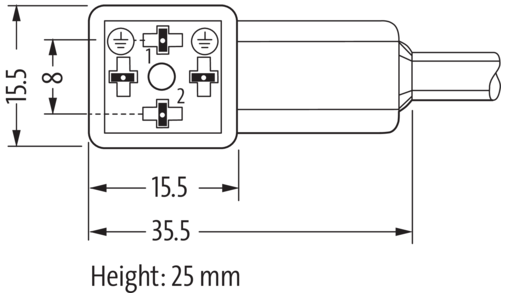

EOL - MQ12 male 90° A-cod. / MSUD valve plug C-8mm
Цена без НДС
Запросить цену

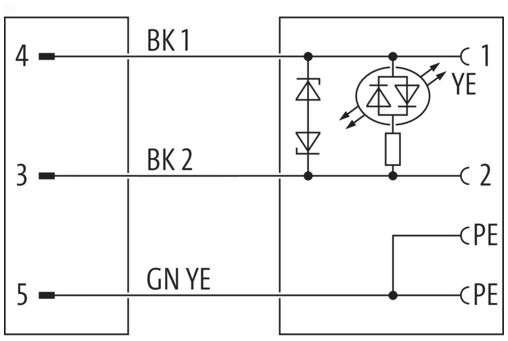

MSUD Form C (8 mm) MQ12 Male 90° 24 V AC ±20% / DC ±25% LED and suppression Further cable lengths on request. Plastic housings with good resistance...
Вес
0,286 kg
Страна происхождения
CZ
Обозначение модели
MSTL3-C-W636_5.0-S50_lo
Cable length
5,00 m
Family construction form
MQ12
Threaded hole
M2.5
Tightening torque
0,4 Nm
Degree of protection (EN IEC 60529)
IP67, IP65
Operating voltage AC
24 V
Operating voltage AC min.
19,2 V
Operating voltage AC max.
28,8 V
Operating voltage DC
24 V
Operating voltage DC min.
18 V
Operating voltage DC max.
30 V
Current operating per contact max.
4 A
