Murrelektronik

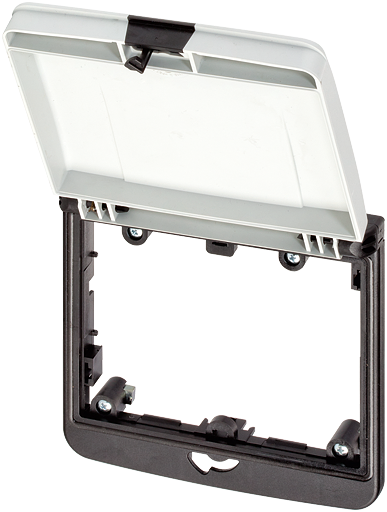

EOL - Modlink MSDD set contains:Frame 4000-68524-0000001
Price excluding VAT
Request a quote
discontinued - End of Life Date: 2024-12-31 | Front Panel Interfaces | Set
Weight
0,266 kg
Country of origin
CZ
Model designation
X MSDD_2grey_NEMA 5-15R löt,2xRJ45 Bu/Bu
suitable for mounting with wall thickness
1...5 mm
Protection
IP65
Housing
Frame: plastic PA black, cap: plastic PBT gray
Temperature range
-30...+70 °C (storage temperature -30...+80 °C)
Operating voltage
48 V AC/DC
Operating current
1.5 A
No. of poles
2 + PE
Connection
Threaded hole M4
Continuous load
3 A
Operating voltage (UL Rating)
max. 30 V AC/42.4 V DC
Locking of ports
Snap In
Specification
CAT5e, Class D, 100 MHz, (EN 50173-1)
