Murrelektronik

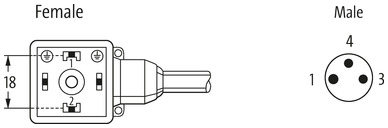

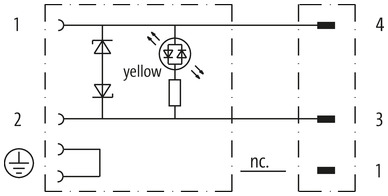

EOL - M8 male 0° A-cod. / MSUD valve plug A-18mm
Hind käibemaksuta
Küsi pakkumist
⚠ NOTICE ⚠ PRODUCT IS DISCONTINUED. PLEASE HAVE A LOOK AT THE ALTERNATIVE PRODUCTS. MSUD Further cable lengths on request. Form A (18 mm) 4-pole...
Kaal
0,131 kg
Päritoluriik
CZ
Mudeli tähistus
MSKL3-H-P223_2.5
Cable length
2,5 m
Tightening torque
0,4 Nm
Mounting method
inserted, screwed
Coating contact
gold plated
Family construction form
M8
Thread
M8 x 1
suitable for corrugated tube (internal Ø)
6,5 mm
Material contact
Copper alloy
Material
PBT
No. of poles
3
Width across flats
SW9
Operating voltage AC
24 V
