Murrelektronik
Emergency-stop pushbutton with 2 positive opening contacts
Prix hors TVA
Demander un devis

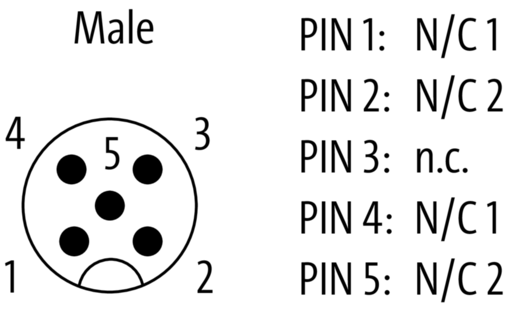

E-Stop 72P 2NC M12(5) with M12 connection 5-pole Emergency-Stop button 2 NC (positively-opening) with protection shroud
Poids
0,193 kg
Pays d'origine
DE
Désignation du modèle
E-Stop 72P 2NC M12(5)
Switching current (AC-15)
30 A
Switching current (DC-13)
2,2 A
Utilization category AC-15 (EN IEC 60947-5-1)
3 A @ 250 V
Utilization category DC-13 (EN IEC 60947-5-1)
2 A @ 24 V
Condition lifetime
load-dependent, temperature dependent
Degree of protection (EN IEC 60529)
IP65
Electrical lifetime
0 cycles
Mechanical endurance
0 cycles
Operating life B10d
250.000 cycles
Bounce time max.
9 ms
Material contact
AgNi
Height
104 mm
