Junction boxes | CDB | CDB650-204 | Brief description: Connection device basic for connecting one sensor with 2 A fuse, 5 cable glands and RS-232 interface to sensor via M12, 17-pin female connector, all outputs available on screw/spring-loaded terminals. | Communication interface: SerialCAN | Communication Interface detail: RS-232 | Operating voltage: 10 V DC 30 V DC | Supported products: Lector seriesCLV62x - CLV64x (depending on type)CLV69xRFID read/write deviceInspectorP series
Brief description

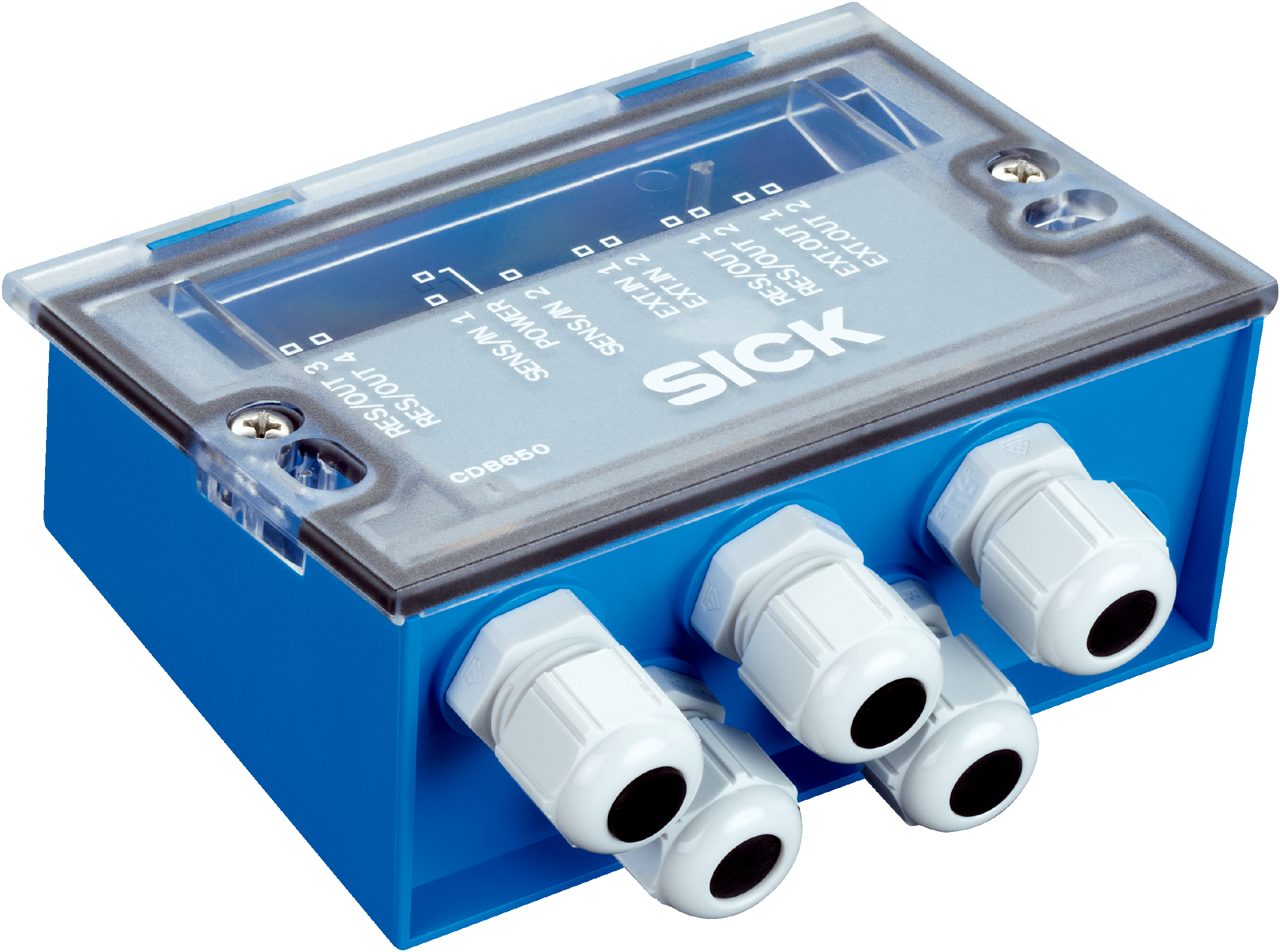

Connection device basic for connecting one sensor with 2 A fuse, 5 cable glands and RS-232 interface to sensor via M12, 17-pin female connector, all outputs available on screw/spring-loaded terminals.
Supported products
Lector seriesCLV62x - CLV64x (depending on type)CLV69xRFID read/write deviceInspectorP series
Cloning module support (CMC)
Yes
Supports display module (CMD)
No
Supports power supply module (CMP)
No
Supports fieldbus gateway (CMF)
No
Supply voltage
(10 V DC ... 30 V DC)
Power consumption
1 W
Housing
Polycarbonate
Enclosure rating
IP65
Protection class
III
Weight
+ 265 g
Dimensions (L x W x H)
124.2 mm x 113.1 mm x 53.9 mm
Scanner connection
17-pin M12 socket, A-coded
Service plug
9-pin D-Sub plug (internal)
Serial
✔ , RS-232, RS-422, RS-485
Remark
Depending on sensor connected
Digital inputs
Depending on sensor connected
Digital outputs
Depending on sensor connected
Optical indicators
11 LEDs
Configuration software
SOPAS ET
Ambient operating temperature
–40 °C ... +50 °C
Storage temperature
–30 °C ... +75 °C
Permissible relative humidity
≤ 90 %, Non-condensing
EU declaration of conformity
✔
UK declaration of conformity
✔
ACMA declaration of conformity
✔
China RoHS
✔
cULus certificate
✔
4Dpro
✔
ECLASS 5.1.4
27250608
ECLASS 6.0
27242608
ECLASS 7.0
27242608
ECLASS 8.0
27242608
ECLASS 9.0
27242608
ECLASS 10.0
27242608
ECLASS 11.0
27242608
ECLASS 12.0
27242608
ECLASS 13.0
27242608
ECLASS 14.0
27242608
ECLASS 15.0
27242608
ETIM 6.0
EC001604
ETIM 7.0
EC001604
ETIM 8.0
EC001604
ETIM 9.0
EC001604
ETIM 10.0
EC001604
UNSPSC 091201.0
32151705
UNSPSC 100501.0
32151705
UNSPSC 111201.0
32151705
UNSPSC 120901.0
32151705
UNSPSC 131201.0
32151705
UNSPSC 140801.0
32151705
UNSPSC 151101.0
32151705
UNSPSC 160901.0
32151705
UNSPSC 171001.0
32151705
UNSPSC 180801.0
32151705
UNSPSC 190501.0
32151705
UNSPSC 200601.0
32151705
UNSPSC 210901.0
32151705
UNSPSC 220601.0
32151705
UNSPSC 230701.0
32151705
UNSPSC 240301.0
32151705
UNSPSC 250901.0
32151705
UNSPSC 260801.0
32151705
