Murrelektronik
Bus terminating plug M12 male A-cod.
Price excluding VAT
Request a quote

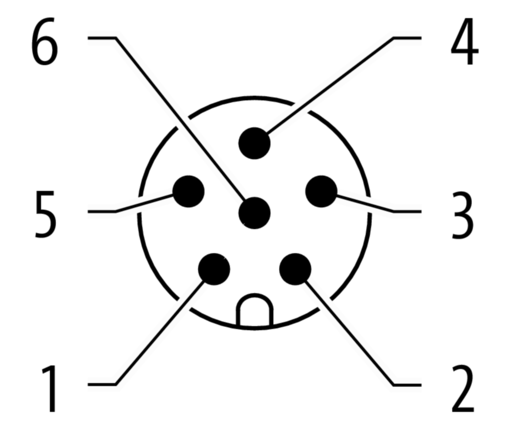

Cube67 Terminating resistor Male M12, 6-pole A-coded Plastic housings with good resistance against chemicals and oils. The resistance to aggressive media...
Weight
0,012 kg
Country of origin
DE
Model designation
MSA05L0-6p* 4-5R
Family construction form
M12
Tightening torque
0,6 Nm
Degree of protection (EN IEC 60529)
IP67
Operating voltage DC max.
30 V
Current operating per contact max.
4 A
Operating voltage DC max. (UL-listed)
30 V
Additional condition protection degree
inserted, screwed
Mounting method
inserted, screwed, Shaking protection
Operating temperature min.
-30 °C
Operating temperature max.
85 °C
