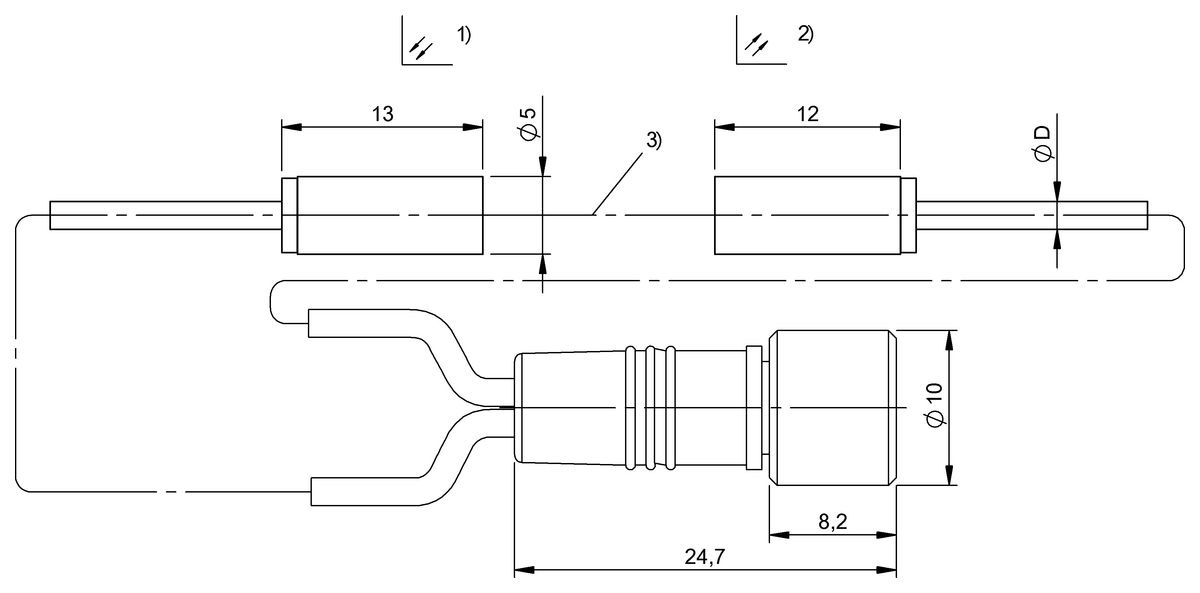

BOH0010 (BOH TR-G05-005-02-S49F) - Micromote - optical sensor heads - Series: G05, Dimension: Ø 5 x 13 mm, Interface: for switching amplifier, Principle of operation: Optical sensor head, Principle of optical operation: Through-beam sensor, Beam characteristic: Divergent, Light type: LED, red light, Light spot size: Ø 35 mm, Range: 0...4 m, Connection: Cable with connector, M8x1-Female, 2 m, PUR, Housing material: Stainless steel, Material sensing surface: PMMA, Mounting part: Diameter 5.0 mm, Smallest part typ.: 0.40 mm, Approval/Conformity: CE, UKCA, WEEE
Series
G05
Interface
for switching amplifier
Principle of operation
Optical sensor head
Principle of optical operation
Through-beam sensor
Beam characteristic
Divergent
Light type
LED, red light
Light spot size
Ø 35 mm
Range
0...4 m
Connection
Cable with connector, M8x1-Female, 2 m, PUR
Housing material
Stainless steel
Material sensing surface
PMMA
Mounting part
Diameter 5.0 mm
Smallest part typ.
0.40 mm
Approval/Conformity
CEUKCAWEEE
Manufacturer
Balluff GmbH
Declaration of Compliance
EU-Konformitätserklärung / EU Declaration of Conformity | (All languages)
Tariff Code
90314990
