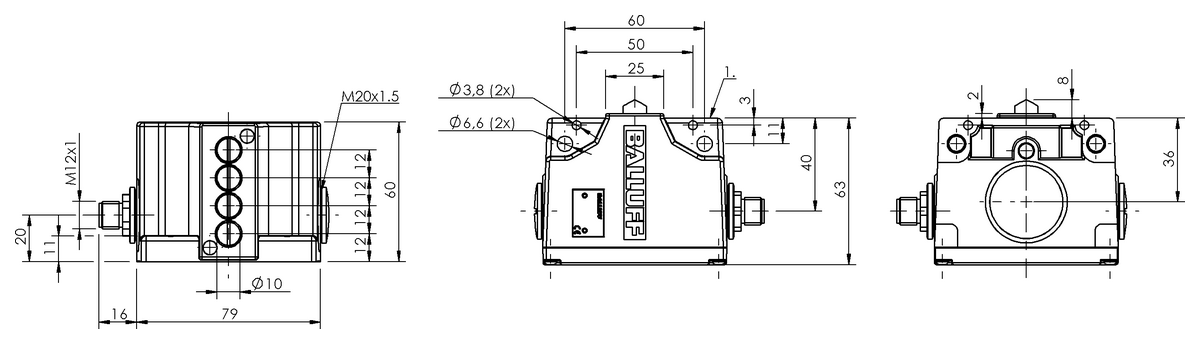

BNS051H (BNS 819-B04-D12-61-12-10-S115L) - Mechanical multiple position limit switches - List price Deutschland: 453,58 EUR - Housing material: Aluminium, Anodized, Number of switching positions: 4x Chisel, Version: Snap contact, Operating principle: 1-4. Switch position: Mechanical, Continuous current: 1-4. Switch position: 1.5 A, Rated operating voltage Ue: 1-4. Switch position: 30 V AC/36 V DC, Installation: Vertical, Approach direction: longitudinal, parallel to attachment surface, Approach speed: 1-4. Switch position: 40 m/min, Connection type: 1. Switch position: Connector, Ambient temperature: -5...85 °C, IP rating: IP67, Approval/Conformity: CE, WEEE
Manuals, CAD models, certificates and other materials are available on the manufacturer's website:
Open product page on manufacturer's website
