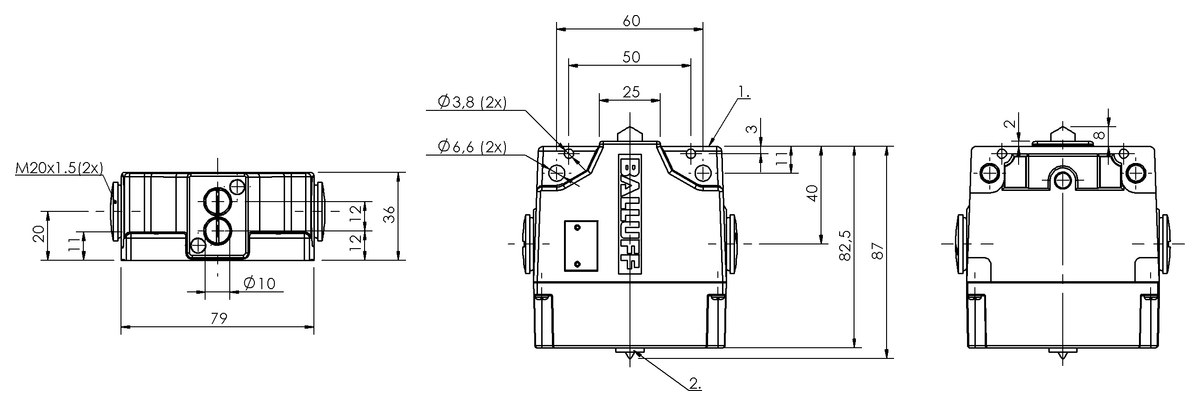

BNS0270 (BNS 819-B02-D12-61-12-14-DH) - Mechanical multiple position limit switches - Dimension: 79 x 36 x 77.5 mm, Housing material: Aluminium, Anodized, Number of switching positions: 2x Chisel, Version: mechanical-inductive, Operating principle: 1-2. Switch position: mechanical-inductive, Continuous current: 1-2. Switch position: 0.4 A, Rated operating voltage Ue: 1-2. Switch position: 24 V DC, Installation: Vertical, Approach direction: longitudinal, parallel to attachment surface, Approach speed: 1-2. Switch position: 40 m/min, Switch position spacing: 12 mm, Connection type: 1-2. Switch position: Screw terminal, Ambient temperature: -5...70 °C, IP rating: IP67, Approval/Conformity: CE, WEEE
