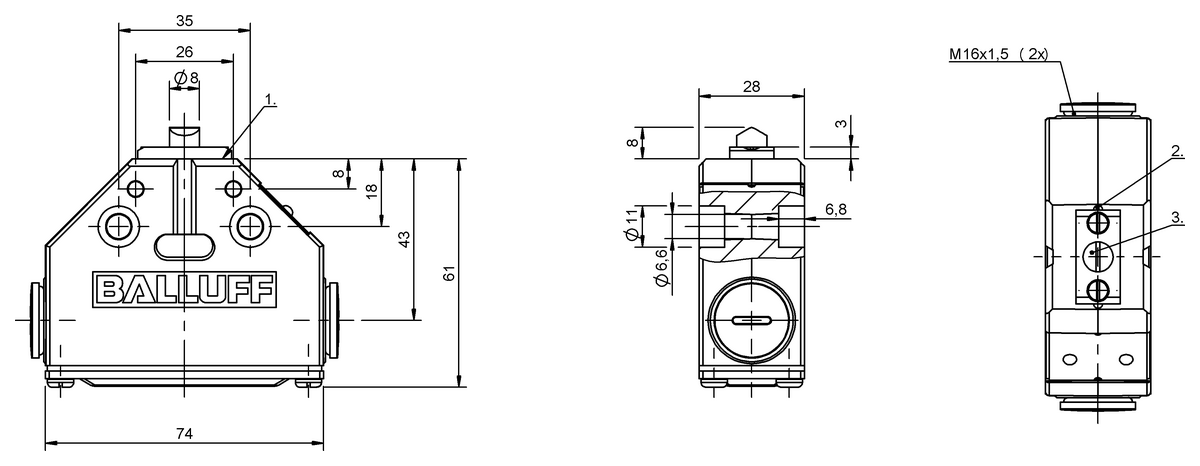

BNS043E (BNS 813-FE-60-185) - Mechanical single position limit switches with safety switch positions - Dimension: 74 x 28 x 61 mm, Housing material: Aluminium, Anodized, Number of switching positions: 1x E-Chisel, Version: Safety EN 60204-1, Operating principle: 1. Switch position: Mechanical, Continuous current: 1. Switch position: 6 A, Rated operating voltage Ue: 1. Switch position: 250 V AC, Installation: any, Approach direction: Vertical to mounting surface, Approach speed: 1. Switch position: 30 m/min, Connection type: 1. Switch position: Screw terminal, Ambient temperature: -5...85 °C, IP rating: IP67, Approval/Conformity: CCC, CE, WEEE
Housing material
Aluminium, Anodized
Number of switching positions
1x E-Chisel
Version
Safety EN 60204-1
Operating principle
1. Switch position: Mechanical
Continuous current
1. Switch position: 6 A
Rated operating voltage Ue
1. Switch position: 250 V AC
Installation
any
Approach direction
Vertical to mounting surface
Approach speed
1. Switch position: 30 m/min
Connection type
1. Switch position: Screw terminal
Ambient temperature
-5...85 °C
IP rating
IP67
Approval/Conformity
CCCCEWEEE
Manufacturer
Balluff GmbH
Declaration of Compliance
EU-Konformitätserklärung / EU Declaration of Conformity (CE) | (All languages)
Manual
BNS F60 819/813 | (German)
Tariff Code
85365080
