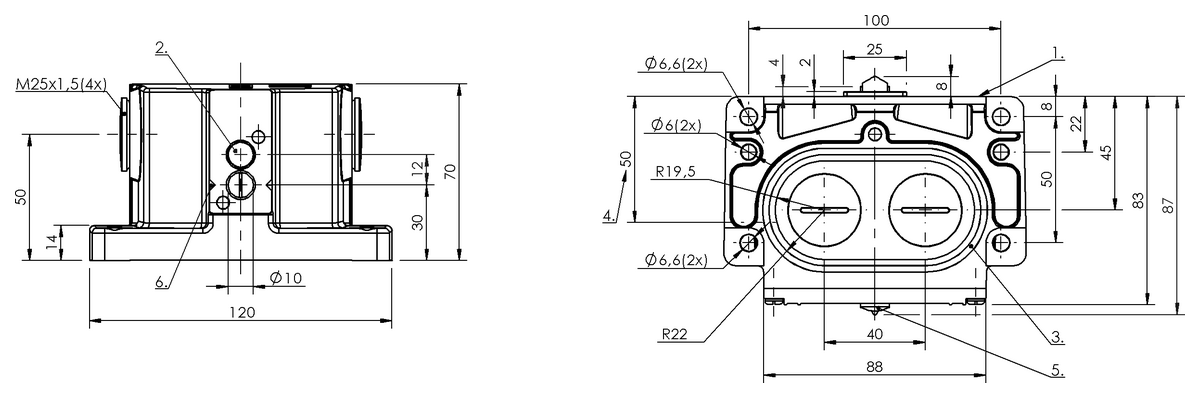

BNS00R3 (BNS 813-D02-D12-100-55-FD-0219) - Mechanical multiple position limit switches with safety switch positions - List price Deutschland: 389,24 EUR - Dimension: 120 x 70 x 87 mm, Housing material: Aluminium, Anodized, Number of switching positions: 2x Chisel, Version: Safety EN 60204-1, Operating principle: 1. Switch position: Mechanical, 2. Switch position: Inductive, Continuous current: 1. Switch position: 6 A, 2. Switch position: 0.2 A, Rated operating voltage Ue: 1. Switch position: 250 V AC, 2. Switch position: 24 V DC, Installation: Vertical, Approach direction: longitudinal, parallel to attachment surface, Approach speed: 1. Switch position: 40 m/min, Switch position spacing: 12 mm, Connection type: 1. Switch position: Screw terminal, Ambient temperature: -5...70 °C, IP rating: IP67, Approval/Conformity: CE, UKCA, WEEE
Manuals, CAD models, certificates and other materials are available on the manufacturer's website:
Open product page on manufacturer's website
