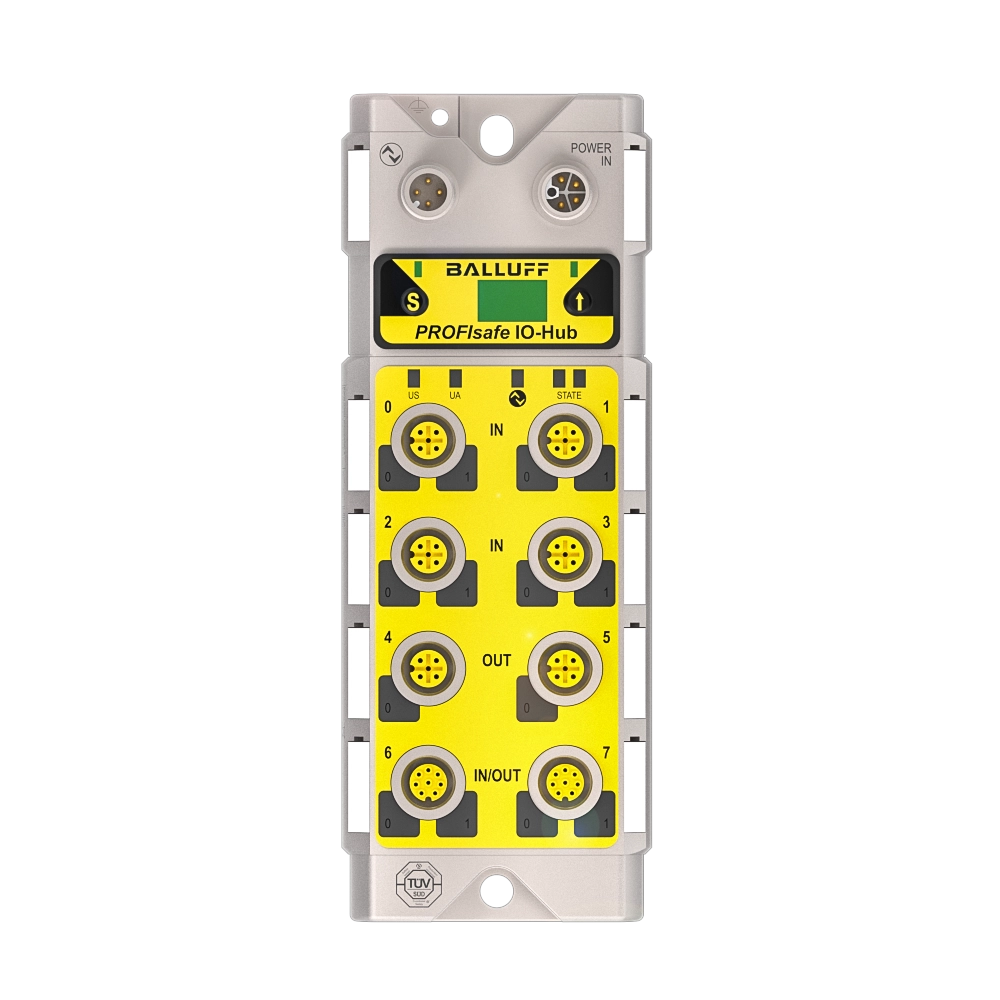

BNI IOF-329-P02-Z092
BNI IOF-329-P02-Z092
BNI IOF-329-P02-Z092
Balluff

BNI IOF-329-P02-Z092

SKU: BNI00JH Available to order
Price excluding VAT
Request a quote

Request a quote

    BNI00JH (BNI IOF-329-P02-Z092) - Profisafe over IO-Link - List price Deutschland: 709,57 EUR - Performance Level: e, Safety category (EN ISO 13849-1): 4, SIL (IEC 61508): 3, Response time max.: 20 ms, Approval/Conformity: CE, UKCA, Safety, cULus, WEEE, Number of safe inputs: 12, Number of safe outputs: 2, Current sum US, sensor: 4.8 A, Current sum UA, actuator: 8 A, Digital inputs: 14x PNP, Type 3, Digital outputs: 2x PP/PM, 2x PNP, Interface: PROFIsafe over IO-Link 1.1, Connection slots: 2x M12x1-Female, 8-pin, A-coded, 6x M12x1-Female, 5-pin, A-coded, Dimension: 68 x 32.4 x 181.5 mm, Ambient temperature: -5...55 °C, IP rating: IP67, Housing material: Zinc, Die casting, nickel-plated

    Performance Level
    e
    Safety category (EN ISO 13849-1)
    4
    SIL (IEC 61508)
    3
    Response time max.
    20 ms
    Approval/Conformity
    CE | UKCA | Safety | cULus | WEEE
    Number of safe inputs
    12
    Number of safe outputs
    2
    Current sum US, sensor
    4.8 A
    Current sum UA, actuator
    8 A
    Digital inputs
    14x PNP, Type 3
    Digital outputs
    2x PP/PM2x PNP
    Interface
    PROFIsafe over IO-Link 1.1
    Connection slots
    2x M12x1-Female, 8-pin, A-coded6x M12x1-Female, 5-pin, A-coded
    Ambient temperature
    -5...55 °C
    IP rating
    IP67
    Housing material
    Zinc, Die casting, nickel-plated
    Manufacturer
    Balluff GmbH
    Declaration of Compliance
    EU-Konformitätserklärung / EU Declaration of Conformity | (All languages)
    Manual
    BNI-IOF-329-P02-Z0XX | (German, English)
    Supplement
    P-TOOL BNI IOF-…-Z0XX | (German) | BNI IOF-329-P02-Z0XX_1 | (German)

    Manuals, CAD models, certificates and other materials are available on the manufacturer's website:

    Open product page on manufacturer's website
