Balluff
BMF 315K-PS-C-2-S4-00,3
Soovitatavad asendused:
Hind käibemaksuta
Küsi pakkumist
BMF007M (BMF 315K-PS-C-2-S4-00,3) - Cylinder sensors for multiple slot shapes - Slot type: T-slot, Dimension: 31 x 5.1 x 6.2 mm, Principle of operation: Magnetic field sensor, Connection: M12x1-Male, 4-pin, A-coded, Cable: PUR, 0.3 m, Application: Pneumatic cylinder with T-slot. For dimensions, see sketch in product view., Housing material: PA 6.6, Switching output: PNP normally open (NO), Switching frequency: 10000 Hz, Operating voltage Ub: 10...30 VDC, Ambient temperature: -25...85 °C, IP rating: IP67, Approval/Conformity: cULus, CE
Slot type
T-slot
Principle of operation
Magnetic field sensor
Connection
M12x1-Male, 4-pin, A-coded
Cable
PUR, 0.3 m
Application

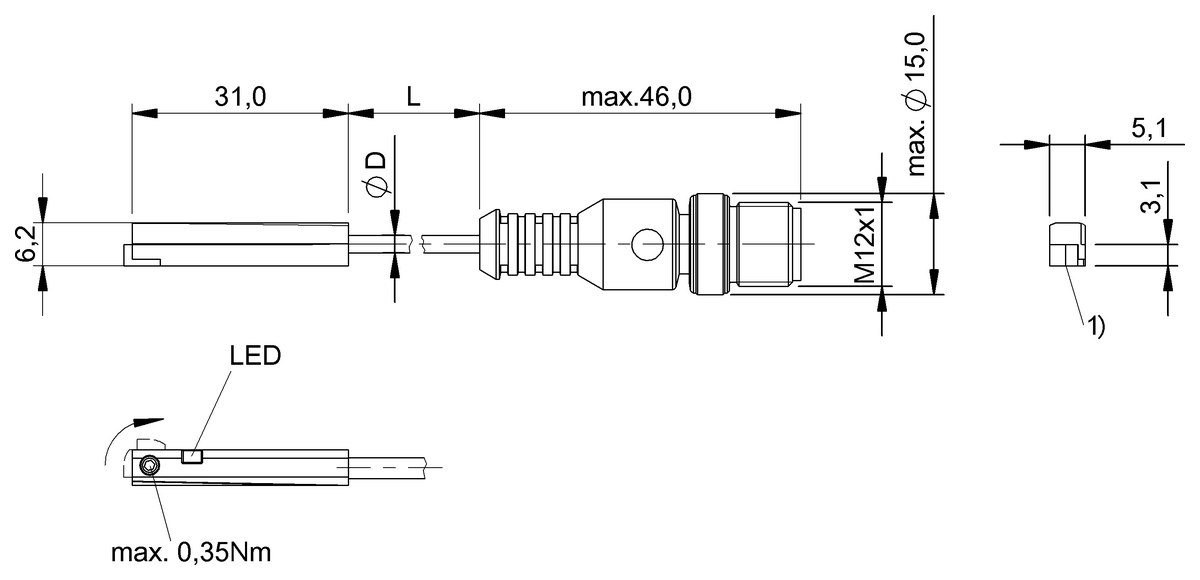

Pneumatic cylinder with T-slot. For dimensions, see sketch in product view.
Housing material
PA 6.6
Switching output
PNP normally open (NO)
Switching frequency
10000 Hz
Operating voltage Ub
10...30 VDC
Ambient temperature
-25...85 °C
IP rating
IP67
Approval/Conformity
cULusCE
Manufacturer
Balluff GmbH
Declaration of Compliance
EU-Konformitätserklärung / EU Declaration of Conformity (CE) | (All languages)
Tariff Code
85365019
Juhendid, CAD-mudelid, sertifikaadid ja muud materjalid on tootja veebisaidil:
Ava toote leht tootja veebisaidil
