Balluff
BKS-S151-19-PC-15
Recommended replacement:
Price excluding VAT
Request a quote

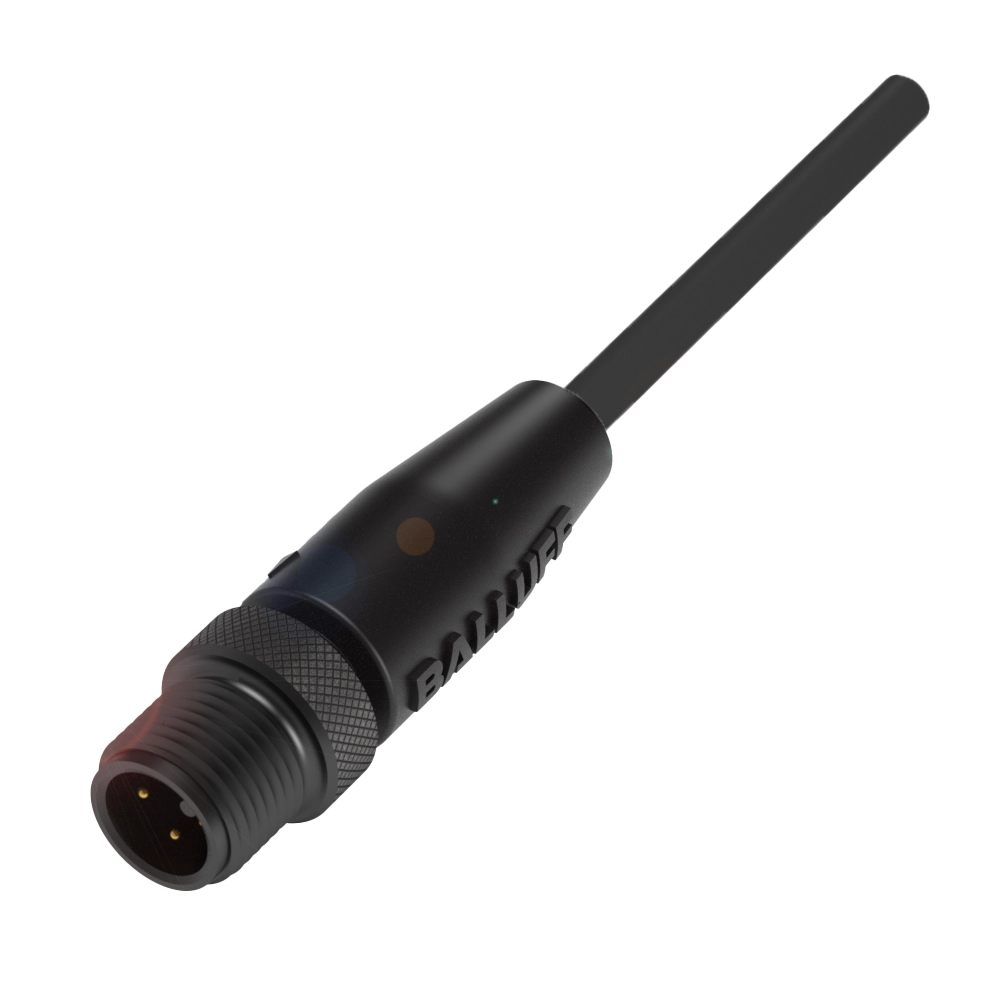

BCC00ZT (BKS-S151-19-PC-15) - Single-ended cordsets - Connection: M12x1-Male, straight, 5-pin, A-coded, Cable: PUR Shielded black, 15 m, drag chain compatible, Number of conductors: 5, Conductor cross-section: 0.25 mm², Cable temperature, fixed routing: -50...80 °C, Cable temperature, flexible routing: -25...80 °C, Operating voltage Ub: 36 VDC / 30 VAC, Approval/Conformity: CE
Connection
M12x1-Male, straight, 5-pin, A-coded
Cable
PUR Shielded black, 15 m, drag chain compatible
Number of conductors
5
Conductor cross-section
0.25 mm²
Cable temperature, fixed routing
-50...80 °C
Cable temperature, flexible routing
-25...80 °C
Operating voltage Ub
36 VDC / 30 VAC
Approval/Conformity
CE
Manufacturer
Balluff GmbH
Declaration of Compliance
EU-Konformitätserklärung / EU Declaration of Conformity (CE) | (All languages)
Taric code
85444290
Manuals, CAD models, certificates and other materials are available on the manufacturer's website:
Open product page on manufacturer's website
