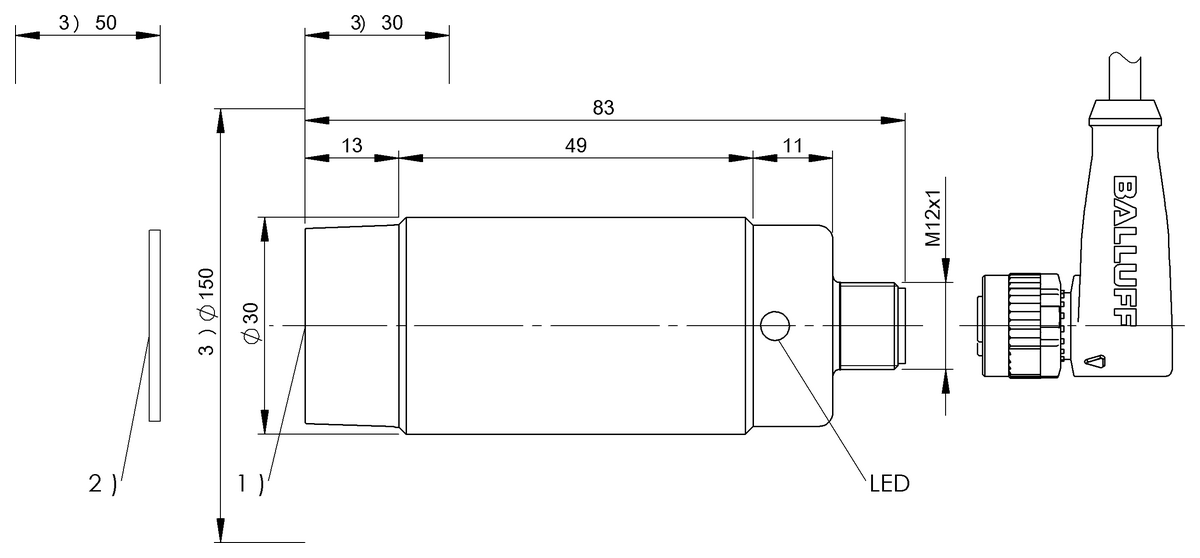

BIS0157 (BIS M-406-045-001-07-S4) - HF RFID readers (13.56 MHz) - List price Deutschland: 471,97 EUR - Product group: HF (13.56 MHz), Dimension: Ø 30 x 83 mm, Installation: metal-free (clear zone), Antenna type: round, Supported data carrier types: DIN ISO 14443, DIN ISO 15693, Connection: Connector, M12x1-Male, 4-pin, Housing material: 1.4404 stainless steel, Adapter PA 6, Ambient temperature: 0...70 °C, IP rating: IP68, Approval/Conformity: CE, UKCA, Ecolab, cULus, FCC, IC (Radio), WEEE, MIC
Product group
HF (13.56 MHz)
Installation
metal-free (clear zone)
Antenna type
round
Supported data carrier types
DIN ISO 14443 | DIN ISO 15693
Show all main features
BIS-V RFID EtherNet/IP Short Demo in CoDeSys
Connection
Connector, M12x1-Male, 4-pin
Housing material
1.4404 stainless steel, Adapter PA 6
Ambient temperature
0...70 °C
IP rating
IP68
Approval/Conformity
CEUKCAEcolabcULusFCCIC (Radio)WEEEMIC
Manufacturer
Balluff GmbH
Declaration of Compliance
EU-Konformitätserklärung / EU Declaration of Conformity | (All languages)
Short guide
BIS M-4XX-045 | (German) | BIS M-4XX-045 | (English)
Supplement
BIS FCC/IC | (English)
Tariff Code
85437090
Disposal instructions
Download
Manuals, CAD models, certificates and other materials are available on the manufacturer's website:
Open product page on manufacturer's website
