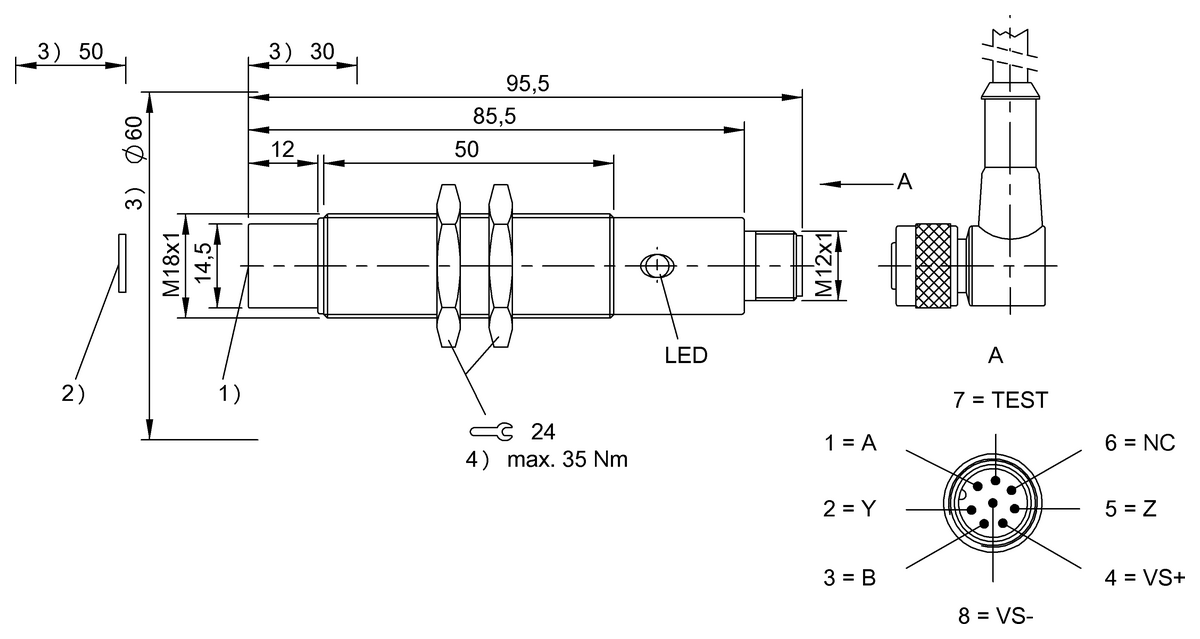

BIS008P (BIS M-304-003-S115) - HF RFID readers (13.56 MHz) - Product group: HF (13.56 MHz), Dimension: Ø 18 x 95.5 mm, Installation: metal-free (clear zone), Antenna type: round, Supported data carrier types: DIN ISO 14443, DIN ISO 15693, Connection: Male, 8-pin, Housing material: Brass, Nickel-plated brass nuts, nickel-plated, Ambient temperature: 0...70 °C, IP rating: IP67, Approval/Conformity: CE, UKCA, FCC Part 15, IC (Radio), cULus, WEEE, MIC
Product group
HF (13.56 MHz)
Installation
metal-free (clear zone)
Antenna type
round
Supported data carrier types
DIN ISO 14443 | DIN ISO 15693
Connection
Male, 8-pin
Housing material
Brass, Nickel-plated brass nuts, nickel-plated
Ambient temperature
0...70 °C
IP rating
IP67
Approval/Conformity
CEUKCAFCC Part 15IC (Radio)cULusWEEEMIC
Manufacturer
Balluff GmbH
Declaration of Compliance
EU-Konformitätserklärung / EU Declaration of Conformity | (All languages)
Supplement
BIS UL ERGAENZUNG | (German) | BIS FCC/IC | (English)
Tariff Code
85437090
