Balluff
BES R01ZC-PSC70B-BP00.7-GS49
Рекомендуемые замены:
Цена без НДС
Запросить цену

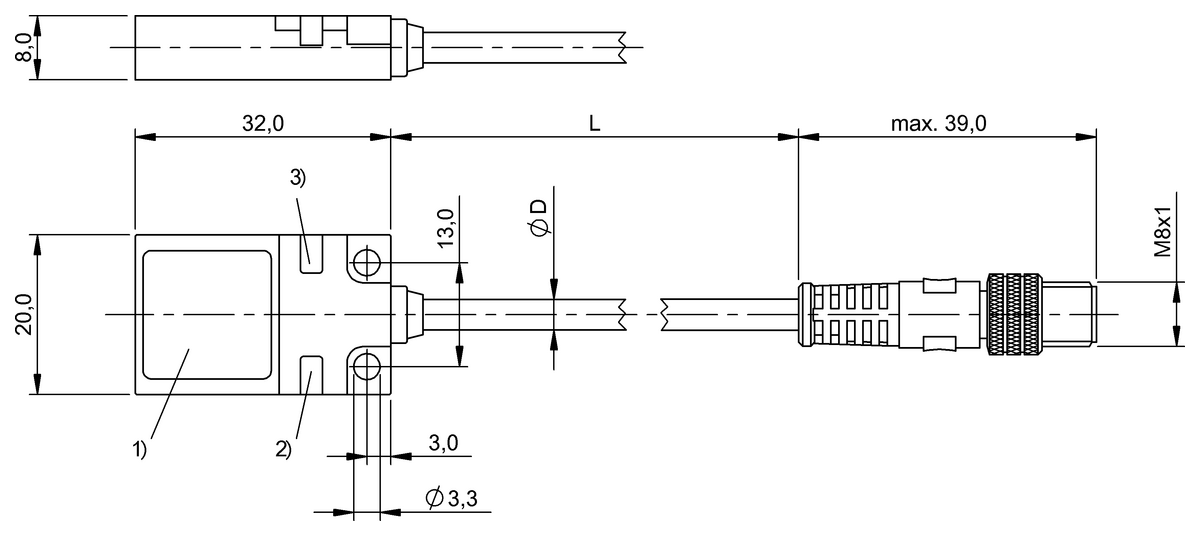

BES01WJ (BES R01ZC-PSC70B-BP00.7-GS49) - Inductive proximity switches and proximity sensors - Dimension: 32 x 20 x 8 mm, Style Housing: 32x20x8, Installation: for flush mounting, Range: 7 mm, Switching output: PNP normally open (NO), Switching frequency: 150 Hz, Housing material: Zinc, Die casting, Material sensing surface: PA 12, Connection: Cable with connector, M8x1-Male, 3-pin, 0.70 m, PUR, Operating voltage Ub: 10...30 VDC, Ambient temperature: -25...70 °C, IP rating: IP67, Approval/Conformity: CE, cULus, EAC
Style Housing
32x20x8
Installation
for flush mounting
Range
7 mm
Switching output
PNP normally open (NO)
Switching frequency
150 Hz
Housing material
Zinc, Die casting
Material sensing surface
PA 12
Connection
Cable with connector, M8x1-Male, 3-pin, 0.70 m, PUR
Operating voltage Ub
10...30 VDC
Ambient temperature
-25...70 °C
IP rating
IP67
Approval/Conformity
CEcULusEAC
Manufacturer
Balluff GmbH
Tariff Code
85365019
Инструкции, CAD-модели, сертификаты и другие материалы — на сайте производителя:
Открыть страницу товара на сайте производителя
