Balluff
BES Q08ZE-PSC20B-BP03-003
Рекомендуемые замены:
Цена без НДС
Запросить цену

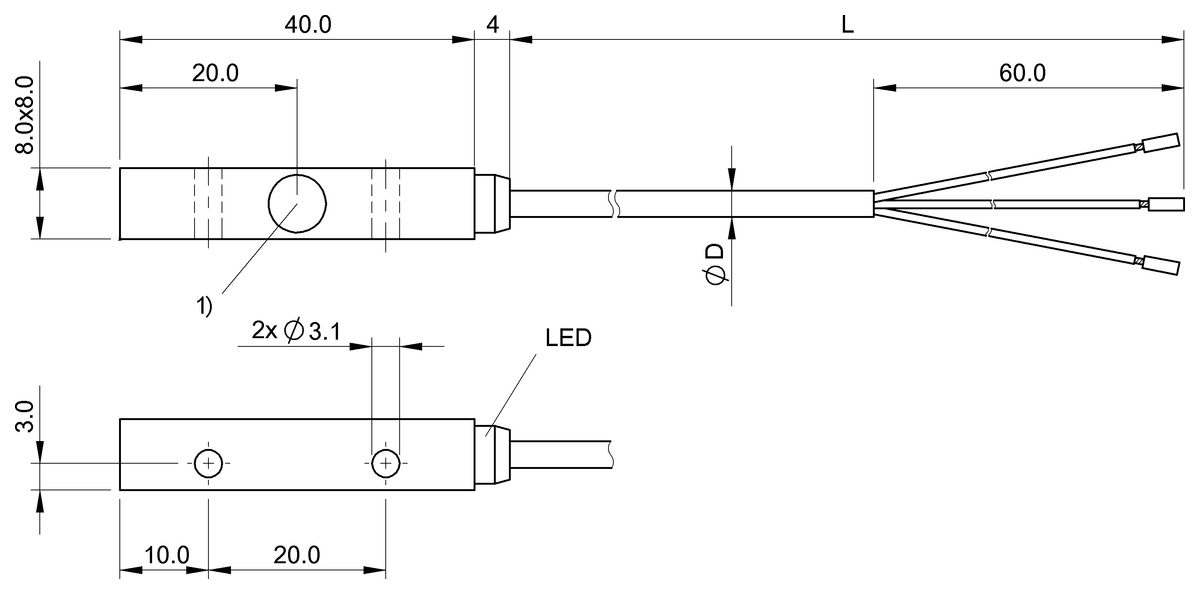

BES03AZ (BES Q08ZE-PSC20B-BP03-003) - Inductive proximity switches and proximity sensors - Dimension: 40 x 8 x 8 mm, Style Housing: 8x8, Installation: for flush mounting, Range: 2 mm, Switching output: PNP normally open (NO), Switching frequency: 3000 Hz, Housing material: Zinc, Die casting, Material sensing surface: PBT, Connection: Cable, 3.00 m, PUR, Operating voltage Ub: 10...30 VDC, Ambient temperature: -25...70 °C, IP rating: IP67, Approval/Conformity: CE, cULus, EAC
Style Housing
8x8
Installation
for flush mounting
Range
2 mm
Switching output
PNP normally open (NO)
Switching frequency
3000 Hz
Housing material
Zinc, Die casting
Material sensing surface
PBT
Connection
Cable, 3.00 m, PUR
Operating voltage Ub
10...30 VDC
Ambient temperature
-25...70 °C
IP rating
IP67
Approval/Conformity
CEcULusEAC
Manufacturer
Balluff GmbH
Declaration of Compliance
EU-Konformitätserklärung / EU Declaration of Conformity (CE) | (All languages)
Tariff Code
85365019
