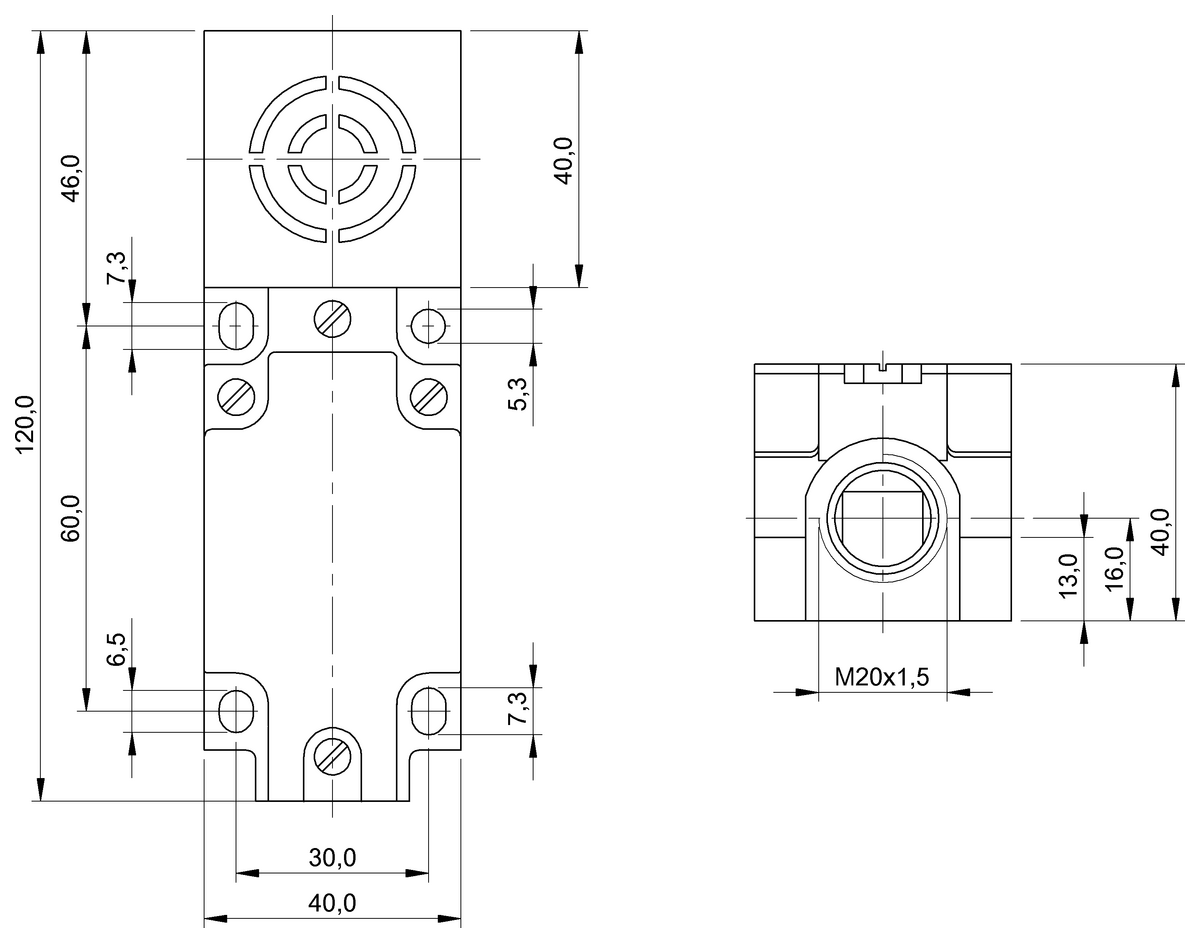

BES0203 (BES 517-132-M3-N) - Inductive sensors for hazardous areas - Dimension: 120 x 40 x 40 mm, Style Housing: 40x40, Installation: for flush mounting, Range: 15 mm, Interface: NAMUR, Switching frequency: 100 Hz, Housing material: PBT, Material sensing surface: PBT, Connection: Screw terminals, Operating voltage Ub: 7.7...9 VDC, Ambient temperature: -25...70 °C, IP rating: IP67, Approval/Conformity: CE, FMS-File J.I.0R1HO.AX
Style Housing
40x40
Installation
for flush mounting
Range
15 mm
Interface
NAMUR
Switching frequency
100 Hz
Housing material
PBT
Material sensing surface
PBT
Connection
Screw terminals
Operating voltage Ub
7.7...9 VDC
Ambient temperature
-25...70 °C
IP rating
IP67
Approval/Conformity
CEFMS-File J.I.0R1HO.AX
Manufacturer
Balluff GmbH
Tariff Code
85365019
