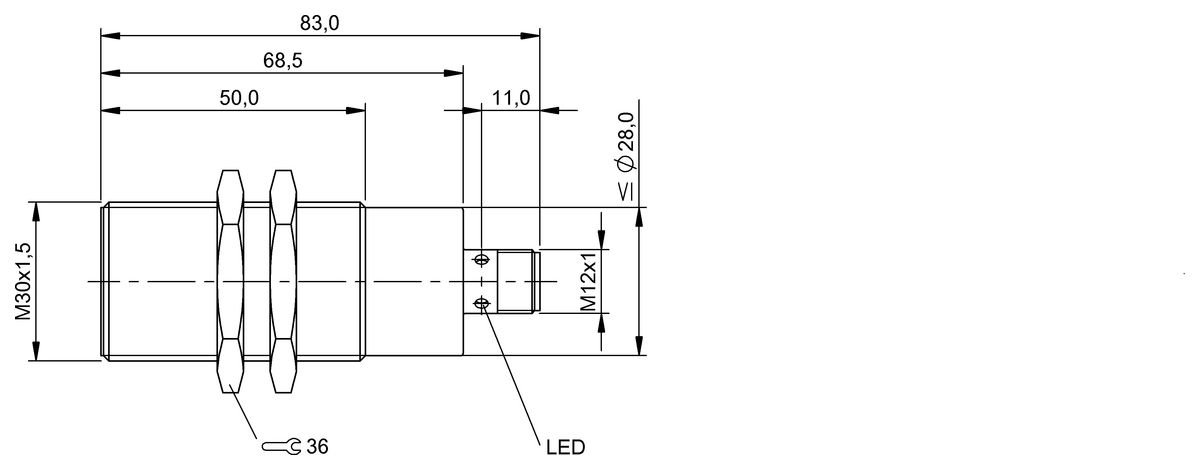

BES02JK (BES 516-327-S4-WR) - Magnetic-field-resistant inductive sensors - Dimension: Ø 30 x 83 mm, Style Housing: M30x1.5, Installation: for flush mounting, Range: 10 mm, Switching output: PNP normally open (NO), Switching frequency: 50 Hz, Housing material: Brass, nickel-plated, Material sensing surface: Ceramic, Connection: Connector, M12x1-Male, 4-pin, Operating voltage Ub: 10...30 VDC, Ambient temperature: -25...70 °C, Magnetic field immune: magnetic field immune (AC/DC), IP rating: IP67, Additional features: Leakage current function, Approval/Conformity: cULus, CE, EAC
Style Housing
M30x1.5
Installation
for flush mounting
Range
10 mm
Switching output
PNP normally open (NO)
Switching frequency
50 Hz
Housing material
Brass, nickel-plated
Material sensing surface
Ceramic
Connection
Connector, M12x1-Male, 4-pin
Operating voltage Ub
10...30 VDC
Ambient temperature
-25...70 °C
Magnetic field immune
magnetic field immune (AC/DC)
IP rating
IP67
Additional features
Leakage current function
Approval/Conformity
cULusCEEAC
Manufacturer
Balluff GmbH
Declaration of Compliance
EU-Konformitätserklärung / EU Declaration of Conformity (CE) | (All languages)
Tariff Code
85365019
