Balluff
BES 516-3021-E3-C-PU-05
Soovitatav asendus:
Hind käibemaksuta
Küsi pakkumist

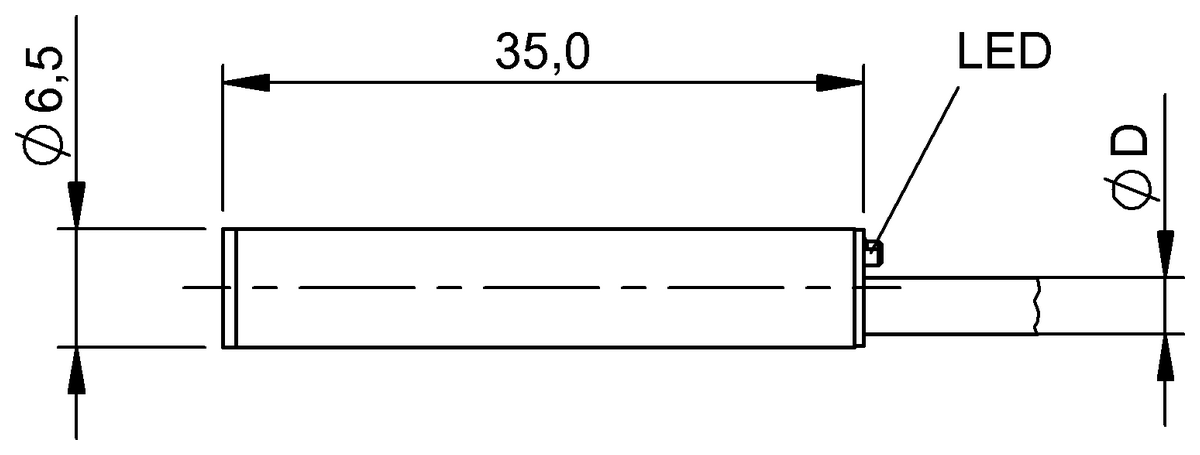

BES00KN (BES 516-3021-E3-C-PU-05) - Inductive proximity switches and proximity sensors - Dimension: Ø 6.5 x 35 mm, Style Housing: D6.5, Installation: for flush mounting, Range: 1.5 mm, Switching output: PNP normally closed (NC), Switching frequency: 3000 Hz, Housing material: Stainless steel, Material sensing surface: PBT, Connection: Cable, 5.00 m, PUR, Operating voltage Ub: 10...30 VDC, Ambient temperature: -25...70 °C, IP rating: IP68, Approval/Conformity: CE, cULus, EAC
Style Housing
D6.5
Installation
for flush mounting
Range
1.5 mm
Switching output
PNP normally closed (NC)
Switching frequency
3000 Hz
Housing material
Stainless steel
Material sensing surface
PBT
Connection
Cable, 5.00 m, PUR
Operating voltage Ub
10...30 VDC
Ambient temperature
-25...70 °C
IP rating
IP68
Approval/Conformity
CEcULusEAC
Manufacturer
Balluff GmbH
Declaration of Compliance
EU-Konformitätserklärung / EU Declaration of Conformity (CE) | (All languages)
Taric code
85365019
Juhendid, CAD-mudelid, sertifikaadid ja muud materjalid on tootja veebisaidil:
Ava toote leht tootja veebisaidil
