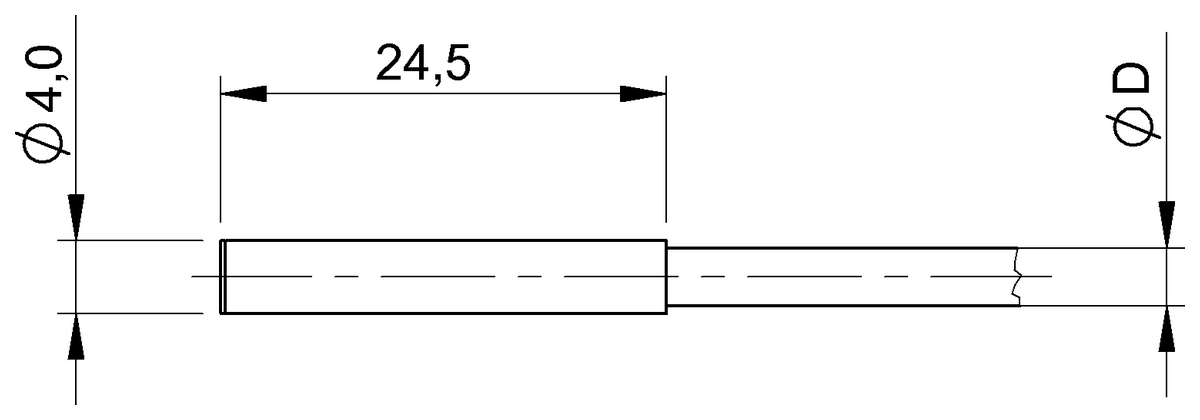

BES02L8 (BES 516-3007-E2-N-03) - Inductive proximity switches and proximity sensors - Dimension: Ø 4 x 24.5 mm, Style Housing: D4.0, Installation: for flush mounting, Range: 0.8 mm, Interface: NAMUR, Switching frequency: 2000 Hz, Housing material: Stainless steel, Material sensing surface: PBT, Connection: Cable, 3.00 m, PVC, Operating voltage Ub: 7.7...9 VDC, Ambient temperature: -25...70 °C, IP rating: IP67, Approval/Conformity: CE, FMS-File J.I.0R1HO.AX
Style Housing
D4.0
Installation
for flush mounting
Range
0.8 mm
Interface
NAMUR
Switching frequency
2000 Hz
Housing material
Stainless steel
Material sensing surface
PBT
Connection
Cable, 3.00 m, PVC
Operating voltage Ub
7.7...9 VDC
Ambient temperature
-25...70 °C
IP rating
IP67
Approval/Conformity
CEFMS-File J.I.0R1HO.AX
Manufacturer
Balluff GmbH
Tariff Code
85365019
