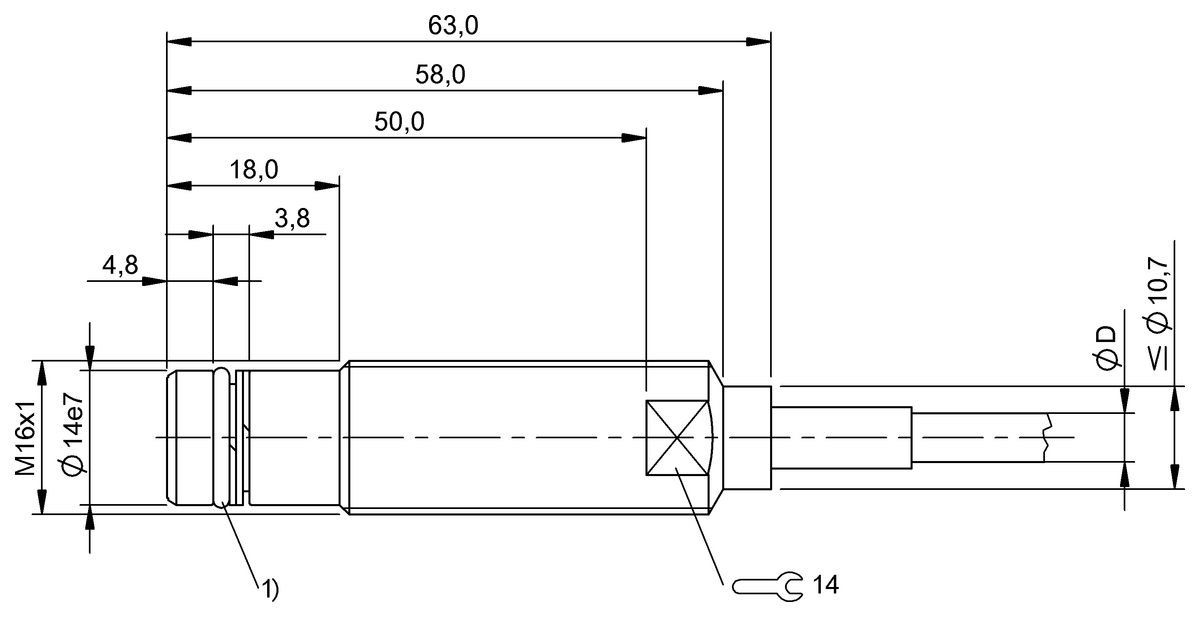

BHS001P (BES 516-300-S149-D-PU-05) - Pressure-rated inductive sensors - Dimension: Ø 16 x 63 mm, Style Housing: M16x1, Installation: for flush mounting, Range: 1.5 mm, Switching output: PNP normally open (NO), Switching frequency: 1000 Hz, Housing material: 1.4104 stainless steel, Material sensing surface: EP, Connection: Cable, 5.00 m, PUR, Operating voltage Ub: 10...30 VDC, Ambient temperature: -25...80 °C, Pressure rating max.: 350 bar, IP rating: IP68, Approval/Conformity: CE, EAC, WEEE
Style Housing
M16x1
Installation
for flush mounting
Range
1.5 mm
Switching output
PNP normally open (NO)
Switching frequency
1000 Hz
Housing material
1.4104 stainless steel
Material sensing surface
EP
Connection
Cable, 5.00 m, PUR
Operating voltage Ub
10...30 VDC
Ambient temperature
-25...80 °C
Pressure rating max.
350 bar
IP rating
IP68
Approval/Conformity
CEEACWEEE
Manufacturer
Balluff GmbH
Declaration of Compliance
EU-Konformitätserklärung / EU Declaration of Conformity (CE) | (All languages)
Tariff Code
85365019
Disposal instructions
Download
