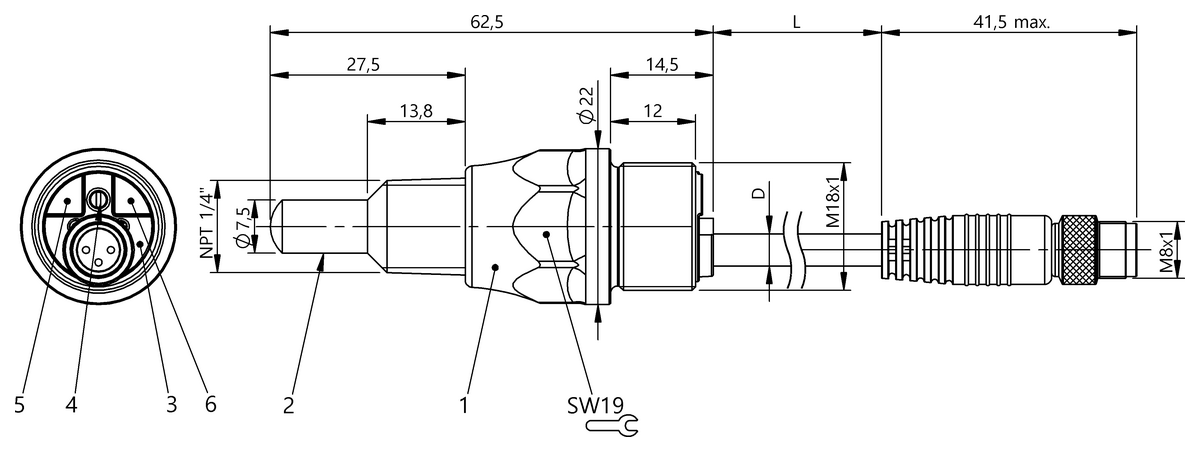

BCS010J (BCS S44KK03-NSCFAG-EP00,3-GS49) - Capacitive level sensors - Dimension: Ø 13.7 x 62.5 mm, Series: S44, Installation: non-flush, Connection: Cable with connector, M8x1-Male, 3-pin, 0.30 m, PUR, Switching output: NPN normally open (NO), Switching frequency: 5 Hz, Sensitivity: media-dependent, adjustable, Function: Smart Level 15, Additional features: Electrically conductive media, Foam and residue compensation, Housing material: PEEK, Material sensing surface: PEEK, Ambient temperature: -5...105 °C, UL approval valid up to 85 °C, Operating voltage Ub: 10...30 VDC, Approval/Conformity: CE, WEEE, cULus, IP rating: IP67
Series
S44
Installation
non-flush
Connection
Cable with connector, M8x1-Male, 3-pin, 0.30 m, PUR
Switching output
NPN normally open (NO)
Switching frequency
5 Hz
Sensitivity
media-dependent, adjustable
Function
Smart Level 15
Additional features
Electrically conductive mediaFoam and residue compensation
Housing material
PEEK
Material sensing surface
PEEK
Ambient temperature
-5...105 °C, UL approval valid up to 85 °C
Operating voltage Ub
10...30 VDC
Approval/Conformity
CEWEEEcULus
IP rating
IP67
Manufacturer
Balluff GmbH
Declaration of Compliance
EU-Konformitätserklärung / EU Declaration of Conformity | (All languages)
Installation/Assembly/Configuration manual
BCS SMART LEVEL | (German)
Taric code
85365019
