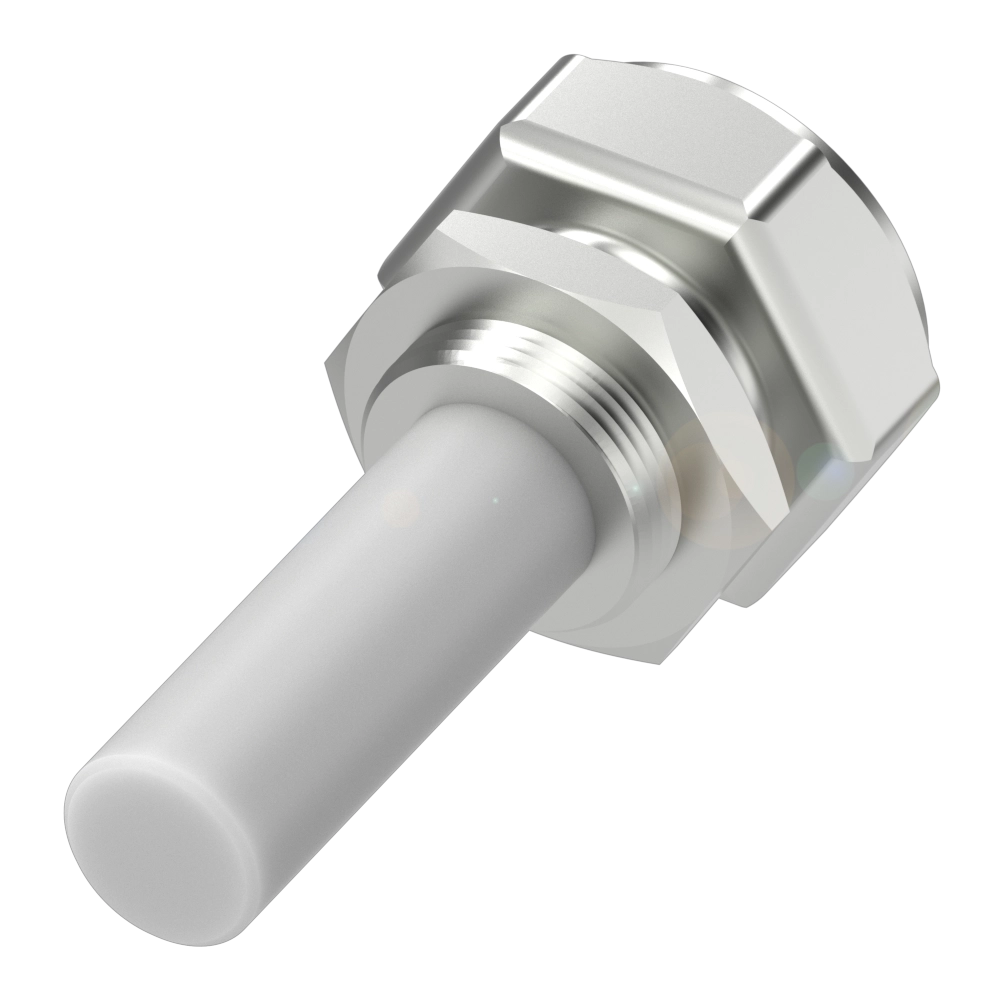

BCS006P (BCS S02T401-NSCFNG-KM16-T02) - Capacitive sensors with special properties - Dimension: 54.8 x 48.5 x 106 mm, Series: S02, Thread (A): R 3/8", Installation: non-flush, Connection: Clamping terminal, Switching output: NPN normally open (NO), Switching frequency: 5 Hz, Sensitivity: media-dependent, adjustable, Housing material: 1.4305 stainless steel, Material sensing surface: PTFE, Ambient temperature: -30...125 °C, Pressure rating max.: 10 bar, Operating voltage Ub: 10...35 VDC, Approval/Conformity: CE, WEEE, EAC, IP rating: IP67
Series
S02
Thread (A)
R 3/8"
Installation
non-flush
Connection
Clamping terminal
Switching output
NPN normally open (NO)
Switching frequency
5 Hz
Sensitivity
media-dependent, adjustable
Housing material
1.4305 stainless steel
Material sensing surface
PTFE
Ambient temperature
-30...125 °C
Pressure rating max.
10 bar
Operating voltage Ub
10...35 VDC
Approval/Conformity
CEWEEEEAC
IP rating
IP67
Manufacturer
Balluff GmbH
Declaration of Compliance
EU-Konformitätserklärung / EU Declaration of Conformity | (All languages)
Manual
BCS STANDARD | (German)
Taric code
85365019
Disposal instructions
Download
